Transmitter:
DVI video + PS/2 keyboard/mouse: DVI female
Includes cable, DVI male to DVI male + two mini-din6 male
Includes cable, DVI male to DVI male + two mini-din6 male
DVI local and multi-head video: DVI female
USB keyboard/mouse: USB Type B
PS/2 keyboard/mouse: Two PS/2 mini-din6F
Dual access PS/2 keyboard/mouse: Mini-din6F
Includes cable, mini-din6M to two mini-din6F
Includes cable, mini-din6M to two mini-din6F
USB 2.0 host: USB Type B
CATx link: RJ45 jack, one per video port + one for USB 2.0
Audio: Two 3.5mm stereo jacks or mini-din8F
Serial: DB9F or mini-din8F
Some multi-head units use mini-din8 and include cable, mini-din8M to two 3.5mm audio plugs + DB9F
Power: Barrel jack

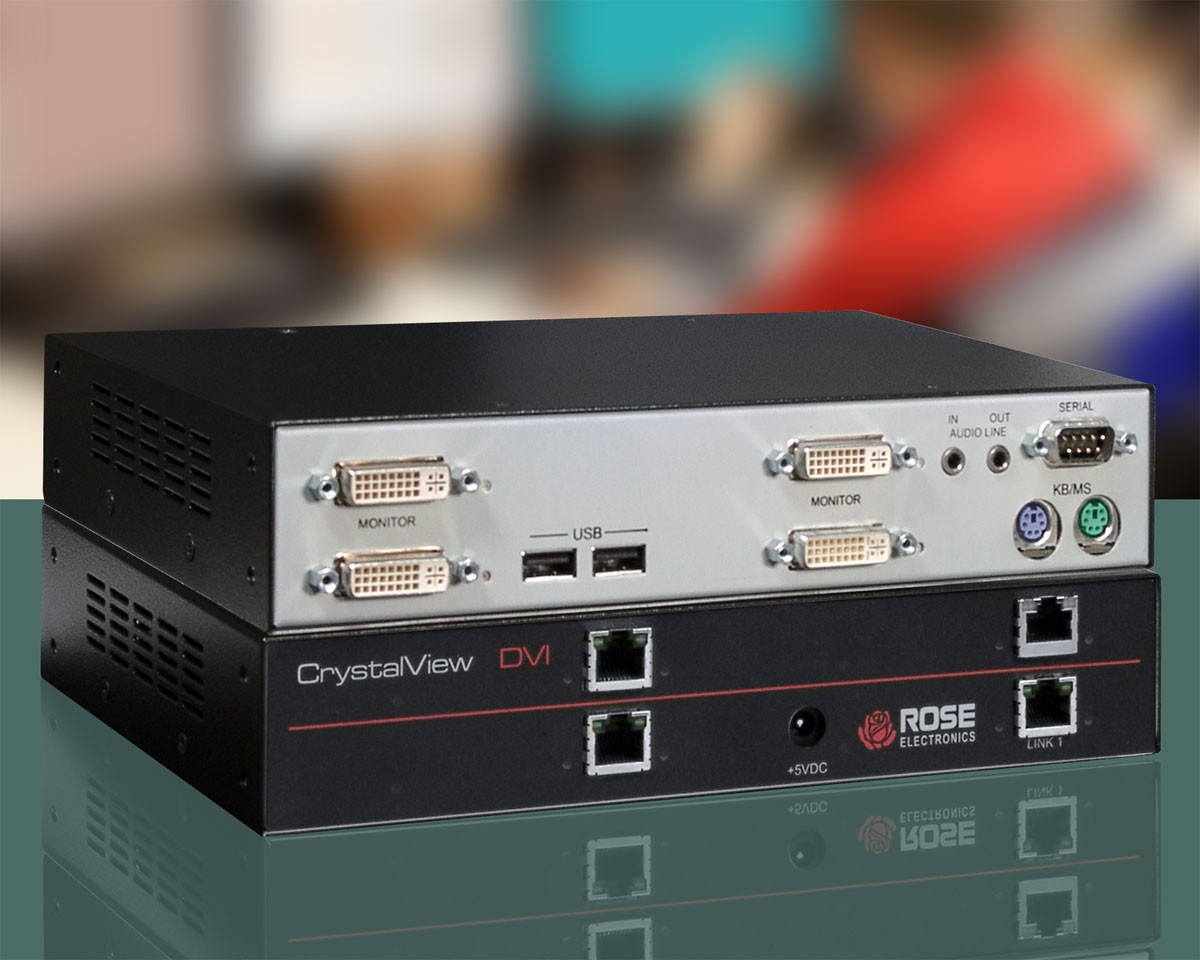

Receiver:
DVI video: DVI female, one per port
USB keyboard/mouse: Two USB type A jack
PS/2 keyboard/mouse: Two PS/2 mini-din6F
USB 2.0 device: Four USB Type A
CATx link: RJ45 jack, one per video port + one for USB 2.0
Audio: Two 3.5mm stereo jacks
Serial: DB9M
Power: Barrel jack
|
