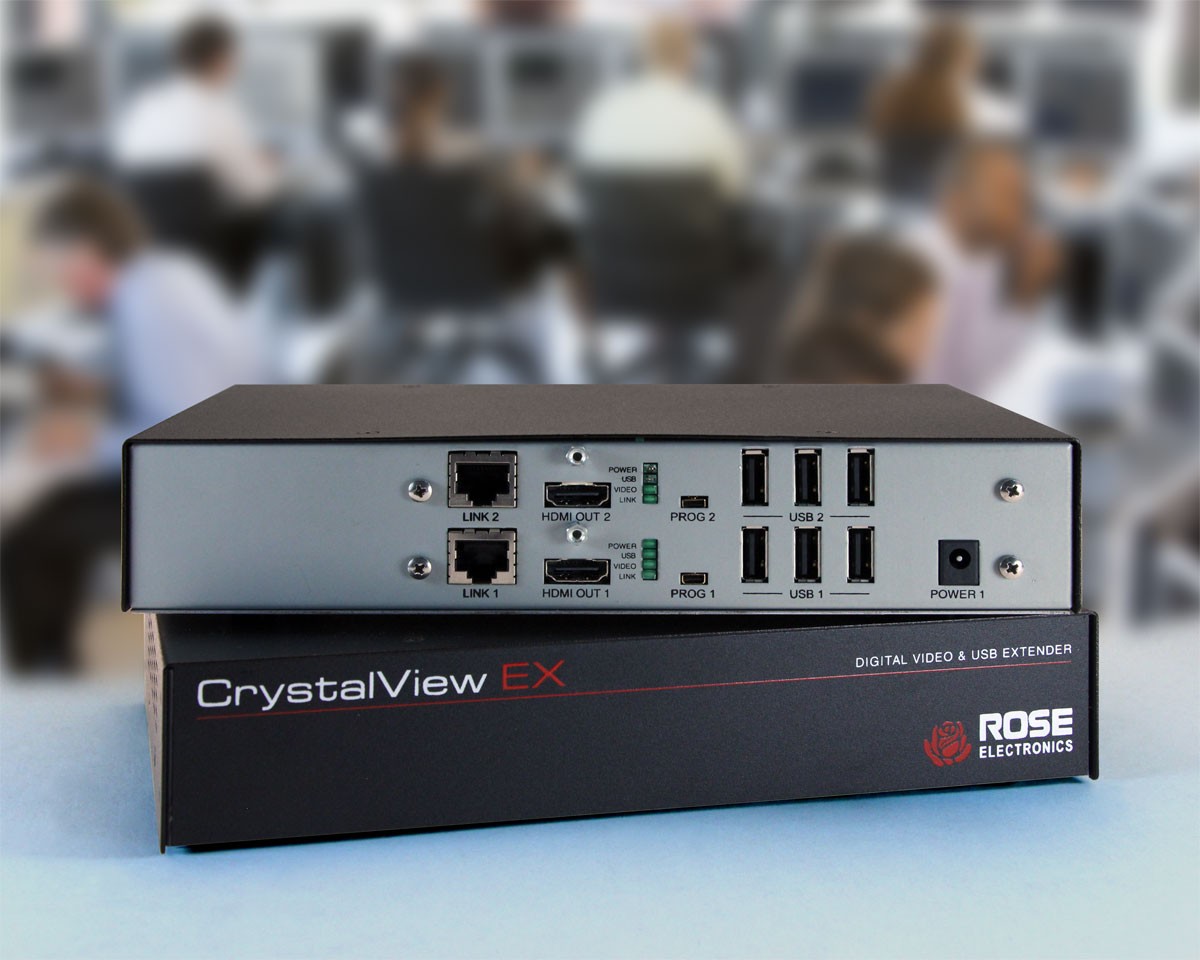

CrystalView EX HDMI Quad 扩展器支持分辨率高达 3840 x 2160 的未压缩视频格式的 HDMI 图形接口。这种全速未压缩视频数据传输格式可防止图像损坏和丢帧。即使在通过 CATx 电缆以最高分辨率显示最远距离为 330 英尺 (100m) 的视频时，扩展器仍能保持流畅和清晰的画面。
它还扩展了 USB 键盘和鼠标信号。使用增强的 USB 仿真，支持范围广泛的 USB HID 和 USB 2.0 设备。接收器单元提供 3 个 USB 端口，通过使用 USB 集线器可将端口数量扩展到 30 个。每个 USB 端口具有 500 毫安的功率，适用于需要更高功率才能运行的 USB 设备。
CrystalView EX HDMI Quad 提供双头、三头或四头型号。 USB与第一视频信号一起传输。每个视频输出都需要单独的 CATx 电缆。
该产品有四机架版本，在单个 1U 19" 机架安装机箱内包括两个、三个或四个独立的 CrystalView (HDMI+USB) 扩展器。
它还扩展了 USB 键盘和鼠标信号。使用增强的 USB 仿真，支持范围广泛的 USB HID 和 USB 2.0 设备。接收器单元提供 3 个 USB 端口，通过使用 USB 集线器可将端口数量扩展到 30 个。每个 USB 端口具有 500 毫安的功率，适用于需要更高功率才能运行的 USB 设备。
CrystalView EX HDMI Quad 提供双头、三头或四头型号。 USB与第一视频信号一起传输。每个视频输出都需要单独的 CATx 电缆。
该产品有四机架版本，在单个 1U 19" 机架安装机箱内包括两个、三个或四个独立的 CrystalView (HDMI+USB) 扩展器。
PART NUMBERS
| MULTI-UNIT KIT — 2, 3, or 4 HDMI+USB (Includes transmitter, receiver, and PSU) | |
|---|---|
| CRK-1DTXT2HM-2T-HD6 | CrystalView EX HDMI mult-unit kit (mini chassis), 2xHDMI, 2xUSB2.0 |
| CRK-1DTXT2H-2T-HD6 | CrystalView EX HDMI mult-unit kit (wide chassis), 2xHDMI, 2xUSB2.0 |
| CRK-1DTXT3H-3T-HD6 | CrystalView EX HDMI mult-unit kit (wide chassis), 3xHDMI, 3xUSB2.0 |
| CRK-1DTXT4H-4T-HD6 | CrystalView EX HDMI mult-unit kit (wide chassis), 4xHDMI, 4xUSB2.0 |
| MULTI-HEAD KIT — one USB and 1, 2, 3, or 4 HDMI (Includes transmitter, receiver, and PSU) | |
| CRK-1DTXT1HM-HD6 | CrystalView EX HDMI multi-head kit (mini chassis), 1xHDMI, 1xUSB2.0 |
| CRK-1DTXT2HM-HD6 | CrystalView EX HDMI multi-head kit (mini chassis), 2xHDMI, 1xUSB2.0 |
| CRK-1DTXT2H-HD6 | CrystalView EX HDMI multi-head kit (wide chassis),2xHDMI, 1xUSB2.0 |
| CRK-1DTXT3H-HD6 | CrystalView EX HDMI multi-head kit (wide chassis),3xHDMI, 1xUSB2.0 |
| CRK-1DTXT4H-HD6 | CrystalView EX HDMI multi-head kit (wide chassis), 4xHDMI, 1xUSB2.0 |
| VIDEO-ONLY KIT — no USB and 1, 2, 3, or 4 HDMI (Includes transmitter, receiver, and PSU) | |
| CRK-1DTX01HM-HD6 | CrystalView EX HDMI video only kit (mini chassis), 1xHDMI |
| CRK-1DTX02HM-HD6 | CrystalView EX HDMI video only kit (mini chassis), 2xHDMI |
| CRK-1DTX02H-HD6 | CrystalView EX HDMI video only kit (wide chassis), 2xHDMI |
| CRK-1DTX03H-HD6 | CrystalView EX HDMI video only kit (wide chassis), 3xHDMI |
| CRK-1DTX04H-HD6 | CrystalView EX HDMI video only kit (wide chassis), 4xHDMI |
| MULTI-UNIT TRANSMITTER — 2, 3, or 4 HDMI+USB | |
| CRK-SLDTXT2HM-2T-HD6 | CrystalView EX HDMI mult-unit transmitter (mini chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SLDTXT2H-2T-HD6 | CrystalView EX HDMI mult-unit transmitter (wide chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SLDTXT3H-3T-HD6 | CrystalView EX HDMI mult-unit transmitter (wide chassis), 3xHDMI, 3xUSB2.0 |
| CRK-SLDTXT4H-4T-HD6 | CrystalView EX HDMI mult-unit transmitter (wide chassis), 4xHDMI, 4xUSB2.0 |
| MULTI-HEAD TRANSMITTER — one USB and 1, 2, 3, or 4 HDMI | |
| CRK-SLDTXT1HM-HD6 | CrystalView EX HDMI mult-head transmitter (mini chassis), 1xHDMI, 1xUSB2.0 |
| CRK-SLDTXT2HM-HD6 | CrystalView EX HDMI mult-head transmitter (mini chassis), 2xHDMI, 1xUSB2.0 |
| CRK-SLDTXT2H-HD6 | CrystalView EX HDMI mult-head transmitter (wide chassis),2xHDMI, 1xUSB2.0 |
| CRK-SLDTXT3H-HD6 | CrystalView EX HDMI mult-head transmitter (wide chassis),3xHDMI, 1xUSB2.0 |
| CRK-SLDTXT4H-HD6 | CrystalView EX HDMImult-head transmitter (wide chassis), 4xHDMI, 1xUSB2.0 |
| VIDEO-ONLY TRANSMITTER — no USB and 1, 2, 3, or 4 HDMI | |
| CRK-SLDTX01HM-HD6 | CrystalView EX HDMI video only transmitter (mini chassis), 1xHDMI |
| CRK-SLDTX02HM-HD6 | CrystalView EX HDMI video only transmitter (mini chassis), 2xHDMI |
| CRK-SLDTX02H-HD6 | CrystalView EX HDMI video only transmitter (wide chassis), 2xHDMI |
| CRK-SLDTX03H-HD6 | CrystalView EX HDMI video only transmitter (wide chassis), 3xHDMI |
| CRK-SLDTX04H-HD6 | CrystalView EX HDMI video only transmitter (wide chassis), 4xHDMI |
| MULTI-UNIT RECEIVER — 2, 3, or 4 HDMI+USB | |
| CRK-SRDTXT2HM-2T-HD6 | CrystalView EX HDMI mult-unit receiver (mini chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SRDTXT2H-2T-HD6 | CrystalView EX HDMI mult-unit receiver (wide chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SRDTXT3H-3T-HD6 | CrystalView EX HDMI mult-unit receiver (wide chassis), 3xHDMI, 3xUSB2.0 |
| CRK-SRDTXT4H-4T-HD6 | CrystalView EX HDMI mult-unit receiver (wide chassis), 4xHDMI, 4xUSB2.0 |
| MULTI-HEAD RECEIVER — one USB and 1, 2, 3, or 4 HDMI | |
| CRK-SRDTXT1HM-HD6 | CrystalView EX HDMI mult-head receiver (mini chassis), 1xHDMI, 1xUSB2.0 |
| CRK-SRDTXT2HM-HD6 | CrystalView EX HDMI mult-head receiver (mini chassis), 2xHDMI, 1xUSB2.0 |
| CRK-SRDTXT2H-HD6 | CrystalView EX HDMI mult-head receiver (wide chassis),2xHDMI, 1xUSB2.0 |
| CRK-SRDTXT3H-HD6 | CrystalView EX HDMI mult-head receiver (wide chassis),3xHDMI, 1xUSB2.0 |
| CRK-SRDTXT4H-HD6 | CrystalView EX HDMImult-head receiver (wide chassis), 4xHDMI, 1xUSB2.0 |
| VIDEO-ONLY RECEIVER — no USB and 1, 2, 3, or 4 HDMI | |
| CRK-SRDTX01HM-HD6 | CrystalView EX HDMI video only receiver (mini chassis), 1xHDMI |
| CRK-SRDTX02HM-HD6 | CrystalView EX HDMI video only receiver (mini chassis), 2xHDMI |
| CRK-SRDTX02H-HD6 | CrystalView EX HDMI video only receiver (wide chassis), 2xHDMI |
| CRK-SRDTX03H-HD6 | CrystalView EX HDMI video only receiver (wide chassis), 3xHDMI |
| CRK-SRDTX04H-HD6 | CrystalView EX HDMI video only receiver (wide chassis), 4xHDMI |
| Options (options fitted on TX and RX units) | |
| /A2 | Bi-Directional Audio |
| /S | Serial RS232 |
| /AS | Bi-Directional Audio + Serial |
| Accessories | |
| CAB-HDMIMMnnn | HDMI male to male cable, nnn = length |
| CAB-USBABnnn | USB type A/B cable, nnn=length |
| RM-UM19 | Rackmount kit for mini chassis |
| RM-UB19 | Rackmount kit for wide chassis |
| TFR-05D400FSUB-1.7F | Replacement power supply for multi transmitter or receiver |
SPECIFICATIONS
|
Dimensions (W x D x H) |
Mini Chassis: 9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U) B Chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) |
| Weight |
Mini Chassis: 4.4 lb (2 kg) B Chassis: 6 lb (2.7 kg) |
| Power |
100-240 VAC 50-60Hz External adapter, +5V, 4A-9A, grounded Dual: 15W Triple: 30W Quad: 45W |
| Resolution |
HDMI: uncompressed 1080p, 1920x1200, 4K 30, 2D/3D depth, 36 bit color Deep color, x.v.color |
| USB2.0 speed | Up to 40Mbps |
| Distance | HDMI/USB2.0: 330 (100m) |
| Connectors |
Multi-Head Version: Transmitter: HDMI video: HDMI female, one per port USB host: USB Type B Link: RJ45 jack, one per port Power: Barrel jack Receiver: HDMI video: HDMI female, one per port USB device: Three USB Type A, 500ma each Link: RJ45 jack Power: Barrel jack Quad-Rack Version: Transmitter: HDMI video:HDMI female, one per port USB host: USB Type B, one per port Link: RJ45 jack, one per port Power: Barrel jack Receiver: HDMI video: HDMI female, one per port USB device: Three USB Type A, 500ma on each port Link: RJ45 jack Power: Barrel jack |
| Controls |
Unit power: Green LED per port Link active: Green LED per port Video active: Green LED per port USB status: Green LED per port |
| Environment |
Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -4°F–158°F (-20°C–70°C) Relative humidity: 20%–80%, non-condensing |
