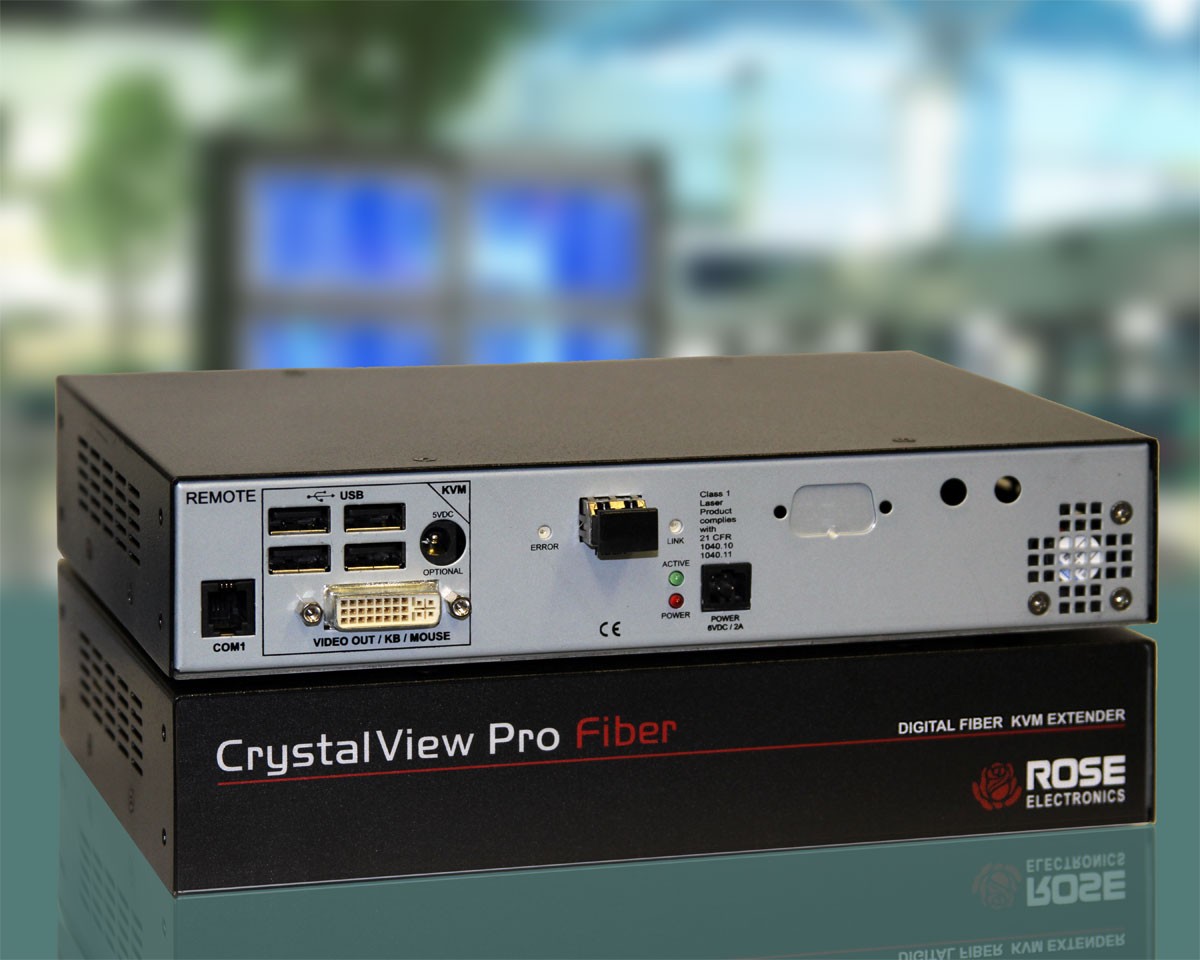

CrystalView Pro Fiber 是数字 KVM 扩展的未来。随着纯平高清显示器的日益普及，CrystalView Pro Fiber 设计用于显示 1600 x 1200 分辨率视频，并可选择升级允许高清 1920 x 1200 分辨率视频，单次传输距离可达 6 英里- 模式 9? 光纤电缆。光纤电缆不仅提供了更大的延伸距离，而且不受电磁干扰的影响。

CrystalView Pro Fiber 的模块化架构允许高度灵活地满足快速变化和扩展的业务需求。 CrystalView Pro Fiber 将支持 PS/2 或 USB 格式的鼠标和键盘扩展，以及任意组合的 DVI 视频和模拟 VGA 视频。对这两种视频格式的支持使其能够在使用 VGA 硬件的现有系统上工作，或补充更新的媒体系统。此外，它同时支持多模和单模光纤电缆，并可选择串行或触摸屏、立体声音频、并行端口、10baseT 和以太网连接。

PART NUMBERS

Kits (transmitter, receiver, and power supply)
CRK-1DFMUDVI	Digital Fiber KVM Extender DVI-USB, multi-mode
CRK-1DFSUDVI	Digital Fiber KVM Extender DVI-USB, single-mode
CRK-2DFMPDVI	Dual Access Digital Fiber KVM Extender DVI-PS/2, multi-mode
CRK-2DFSPDVI	Dual Access Digital Fiber KVM Extender DVI-PS/2, single-mode
CRK-1DFMPDVI/SF/AU	Dual Access Digital Fiber KVM Extender, Unidirectional single fiber, multi-mode with audio
Options
/AUD	Audio & serial option
/2.5	High resolution option for 1920x1200, LC Connectors
Rackmount brackets
RM-UMxx	Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24")
Cables
CAB-CXDVII66MMnnn	UltraCable Hi-Res, PC to Switch, DVI-PS/2 to DVI-PS/2 (M-M)
CAB-ZXV66MMnnn	UltraCable, PC to Switch, VGA-PS/2 to VGA-PS/2 (M-M)
CAB-CXV66MMnnn	UltraCable Hi-Res, PC to Switch, VGA-PS/2 to VGA-PS/2 (M-M)
CAB-CXVMMnnn	UltraCable Hi-Res, PC to Switch, VGA to VGA (M-M)
CAB-CXDVIIMMnnn	UltraCable Hi-Res, PC to Switch, DVI to DVI (M-M)
CAB-D9MFnnn	Cable, Serial, DB9M to DB9F
CAB-SPMMnnn	Cable, Stereo Audio, Mini-Phone M-M (3.5mm)
CAB-09SMDFSCnnn	Fiber cable, single-mode duplex fiber, 09/125?, SC connector
CAB-50MMDFSCnnn	Fiber cable, multi-mode duplex fiber 50/125?, SC connector
CAB-09SMDFLCnnn	Fiber cable, single-mode duplex fiber, 09/125?, LC connector
CAB-50MMDFLCnnn	Fiber cable, multi-mode duplex fiber 50/125?, LC connector
nnn = cable length in feet

SPECIFICATIONS

Dimensions (W x D x H)	9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U)
Weight	3.3 lb (1.5 kg)
Power	90-240 VAC 50-60Hz External adapter, +6V DC, 2A 8W
Resolution	DVI video: 1600 x 1200, 1920 x 1200 with 2.5G (30FPS) optin VGA video: 1600 x 1200, , 1920 x 1200 with 2.5G (30FPS) option
Distance	Multi-mode fiber: (62.5): 650 (200m) Multi-mode fiber: (50): 1,300 (400m) Multi-mode fiber: (50) OM3: 3,300 (1Km) Single-mode fiber: (9): 33,000 (10Km) 2.5G option: Multi-mode fiber: (50) OM3:650 (200 m) Single-mode fiber: (9): 6,560 (10Km)
Connectors	Transmitter: DVI/VGA video: DVI-I female Local DVI/VGA video: DVI-I female USB keyboard/mouse: USB Type B PS/2 keyboard/mouse: Two PS/2 mini-din6F Local PS/2 keyboard/mouse: Two PS/2 mini-din6F Audio: Two 3.5mm stereo jacks Serial: DB9F Link: SC Fiber, one per video port Link (2.5G Option): LC Fiber Power: 4-pin square Program: RJ11 Receiver: DVI/VGA video: DVI-I female USB keyboard/mouse: Two USB type A jack PS/2 keyboard/mouse: Two PS/2 mini-din6F Audio: Two 3.5mm stereo jacks Serial: DB9M Link: SC Fiber, one per video port Link (2.5G Option): LC Fiber Power: 4-pin square Program: RJ11
Controls	Configuration: OSD for DVI/VGA settings Comm status: Red LED Link status: Green LED Video status: Green LED Error status: Green LED
Environment	Operating temperature: 50°F–113°F (10°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing
