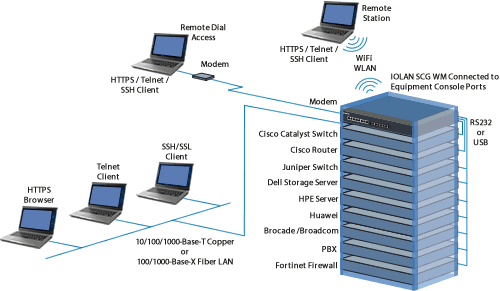

Processor
|
1750 MIPS, 500 MHz core 32 bit ARM processor, with integrated hardware encryption processor
|
|
Memory
|
|
RAM MB
|
1000
|
|
Flash MB
|
4000
|
|
Interface Ports
|
|
Integrated Device Management Ports
|
2 x USB 3.0
|
|

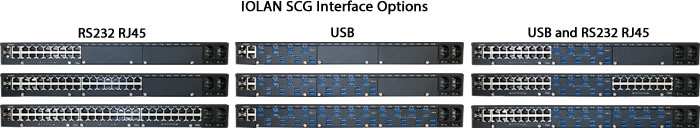

Modular Device Management Ports
|
IOLAN SCG18:
-
16 x RS232 RJ45 or
-
16 x USB 3.0
|
IOLAN SCG34:
-
32 x RS232 RJ45 or
-
32 x USB 3.0 or
-
16 x RS232 RJ45 and 16 x USB 3.0
|
IOLAN SCG50:
-
48 x RS232 RJ45 or
-
48 x USB 3.0 or
-
16 x RS232 RJ45 and 32 x USB 3.0
-
32 x RS232 RJ45 and 16 x USB 3.0
|
|
Each chassis can be expanded or modified with an optional 16-port Interface card with either RS232 RJ45 ports or USB 3.0 ports
|
|
Sun / Solaris
|
Sun / Oracle ‘Solaris? Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
|
|

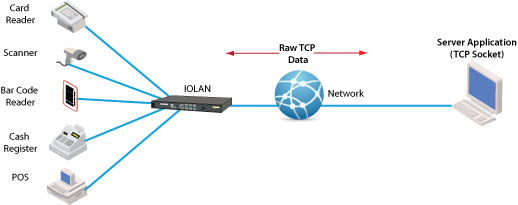

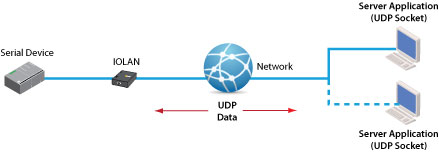

Serial Port Speeds
|
50bps to 230Kbps with customizable baud rate support
|
|
Data Bits
|
Configurable for 5,6,7 or 8-bit protocol support

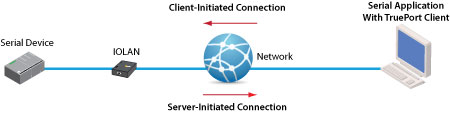

Use TruePort to transparently pass 9-bit serial data
|
|
Parity
|
Odd, Even, Mark, Space, None
|
|
Flow Control
|
Hardware, Software, Both, None
|
|
Serial Port Protection
|
15Kv Electrostatic Discharge Protection (ESD)
|
|
Local Console Ports
|
1 x RS232 RJ45
1 x Micro USB with DB9 adapter
|
|
Network
|
2 x 10/100/1000Base-T RJ45 Copper
2 x 100/1000Base-X Fiber SFP Ports
Note: Any combination of two network ports can be used.
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex
|
|
Micro SD Card slot
|
Yes
|
|
Ethernet Isolation
|
1.5Kv Magnetic Isolation
|
|
Integrated Modem
|
Integrated V.92/V.90 modem with RJ11 jack
|
|
Integrated Wireless Access
|
|
WLAN (Wi-Fi ®)
|
IEEE 802.11 a,b,g,n,i
|
|
Wireless Topology
|
Infrastructure (AP) and Peer to Peer- (SoftAP) modes
|
|
Wireless Radio
|
Dual-Band Radio ; 2.4GHz and 5GHz 20, 40Mhz SISO 2.4-GHz
|
|
Wireless Data Rates
|
802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (40Mhz channel @ 400ns Short GI)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps
|
|
Operational Frequency Range (MHz)
|
2412 to 2484 MHz
4910 to 5825 MHz
|
|
Modulation
|
DSSS, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
|
|
Wireless Receiver Sensitivity in dBm (2.4Ghz SISO)
|
802.11b/g (20 MHz channel)
1 Mbps: -95.0
2 Mbps: -92.0
5.5 Mbps: -89.2
6 Mbps: -91.0
9 Mbps: -89.0
11 Mbps: -86.3
12 Mbps: -88.0
18 Mbps: -85.5
24 Mbps: -82.5
36 Mbps: -79.0
48 Mbps: -74.0
54 Mbps: -72.7
802.11n (20 MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -89.3
14.4 Mbps (MCS1): -86.5
21.7 Mbps (MCS2): -84.5
28.9 Mbps (MCS3): -81.5
43.3 Mbps (MCS4): -78.0
57.8 Mbps (MCS5): -73.5
65.0 Mbps (MCS6): - 71.5
72.2 Mbps (MCS7): -70.0
802.11n (40 MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -89.3
30.0 Mbps (MCS1): -86.5
45.0 Mbps (MCS2): -84.5
60.0 Mbps (MCS3): -81.5
90.0 Mbps (MCS4): -78.0
120.0 Mbps (MCS5): -73.5
135.0 Mbps (MCS6): - 71.5
150.0 Mbps (MCS7): -70.0
|
|
Wireless Transmit Power in dBm (2.4Ghz SISO)
|
(20 MHz channel)
1 Mbps: 16.0
2 Mbps: 16.0
5.5 Mbps: 16.0
6 Mbps: 16.5
9 Mbps: 16.5
11 Mbps: 16.0
12 Mbps: 16.5
18 Mbps: 16.5
24 Mbps: 16.5
36 Mbps: 15.2
48 Mbps: 14.3
54 Mbps: 13.5
MCS0: 16.0
MCS1: 16.0
MCS2: 16.0
MCS3: 16.0
MCS4: 15.2
MCS5: 14.3
MCS6: 13.5
MCS7: 12.6
(40 MHz channel)
MCS0: 14.0
MCS7: 11.8
|
|
Wireless Receiver Sensitivity in dBm (5Ghz SISO)
|
802.11a
6 Mbps: -92.5
9 Mbps: -90.5
12 Mbps: -90.0
18 Mbps: -87.5
24 Mbps: -84.5
36 Mbps: -81.0
48 Mbps: -76.5
54 Mbps: -74.6
802.11n (20MHz channel) @ 400ns GI
7.2 Mbps (MCS0): -91.4
14.4 Mbps (MCS1): -88.0
21.7 Mbps (MCS2): -86.0
28.9 Mbps (MCS3): -83.0
43.3 Mbps (MCS4): -79.8
57.8 Mbps (MCS5): -75.5
65.0 Mbps (MCS6): - 74.0
72.2 Mbps (MCS7): -72.4
802.11n (40MHz channel) @ 400ns GI
15.0 Mbps (MCS0): -88.5
150.0 Mbps (MCS7): -69.3
|
|
Wireless Transmit Power in dBm (5Ghz SISO)
|
802.11a
6 Mbps: 18.0
9 Mbps: 18.0
12 Mbps: 18.0
18 Mbps: 18.0
24 Mbps: 17.4
36 Mbps: 16.5
48 Mbps: 15.8
54 Mbps: 14.5
802.11n (HT20) @ 400ns GI
7.2 Mbps (MCS0): 18.0
14.4 Mbps (MCS1): 18.0
21.7 Mbps (MCS2): 18.0
28.9 Mbps (MCS3): 18.0
43.3 Mbps (MCS4): 16.5
57.8 Mbps (MCS5): 15.8
65.0 Mbps (MCS6): 14.5
72.2 Mbps (MCS7): 12.0
802.11n (HT40) @ 400ns GI
15.0 Mbps (MCS0): 16.5
150.0 Mbps (MCS7): 12.0
|
|
Short Guard Interval (SGI)
|
800ns and 400ns (Short Guard Interval)
|
|
Wireless Antenna
|
Dual-band 2.4/5.0 GHz, Omni-directional, Dipole antenna, 50 Ohm, 2 dBi, black with RP-SMA / RSMA finger tighten connector. Same antenna can be used as Main and/or Diversity for increased wireless performance, signal reliability, and extended range.
|
|
Maximal Ratio Combining (MRC), Rx Diversity
|
2.4 GHz MRC support for up to 1.4 Extended Range and 5 GHz Diversity Capable
|
|
Wireless Security
|
WEP, WPA-PSK, WPA2-PSK ° Enterprise (EAP, PEAP, LEAP), 802.11i (includes hardware-accelerated Advanced Encryption Standard [AES]), 802.1x supplicant
|
|

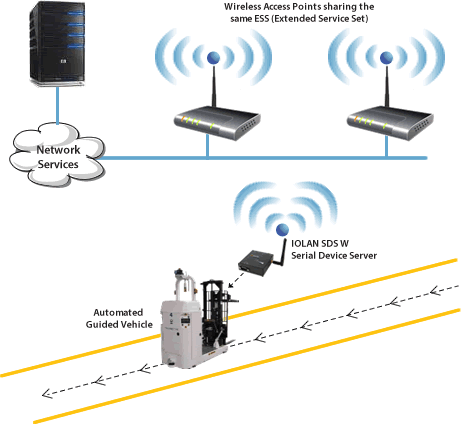

Fast Wireless Roaming
|
Ideal for mobile applications, the IOLAN can transparently roam between APs (Access Points) that share the same ESS (Extended Service Set)
|
|
WiFi Protected Setup (WPS V2)
|
A plug and play set up feature where the IOLAN can easily connect to a WPS capable central access pointor SoftAP compliant device supporting WPS
|
|
Power
|
|
Power Supply
|
Dual AC power supply
USA Models: IEC320-C13 to NEMA 5-15P line cord
UK Models: IEC320-C13 to BS1363 line cord
EU Models: IEC320-C13 to CEE 7/7 Schuko
South Africa Models: IEC320-C13 to BS546 line cord
Australia Models: IEC320-C13 to AS3112 line cord
|
|
Nominal Input Voltage
|
110/230v AC
|
|
Input Voltage Range
|
100-240v AC
|
|
AC Input Frequency
|
47-63Hz
|
|
Current Consumption @ 100v (Amps)
|
IOLAN SCG18: 0.19
IOLAN SCG34: 0.25
IOLAN SCG50: 0.31
|
|
Current Consumption @ 240v (Amps)
|
IOLAN SCG18: 0.08
IOLAN SCG34: 0.11
IOLAN SCG50: 0.13
|
|
Typical Power Consumption (Watts)
|
18 Watts
Note: USB cards can use an additional power of 2.5 Watts per port up to a max of 8 Watts total
|
|
Power Line Protection
|
Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes)
|
|
Front Panel LCD Display and Keyboard Indicators
|
|
|
Network Link Activity
Serial Tx/Rx data per port
|
|
LED Indicators
|
|
|
System Ready
Network Link Activity
|
|
Environmental Specifications
|
|
Heat Output (BTU/HR)
|
IOLAN SCG18: 61.42
IOLAN SCG34: 83.60
IOLAN SCG50: 105.77
|
|
MTBF ( Hours )
|
79,478
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
|
|
Operating Temperature
|
0°C to 55°C, 32°F to 131°F
|
|
Storage Temperature
|
-40°C to 85°C, -40°F to 185°F
|
|
Humidity
|
5 to 95% (non condensing) for both storage and operation.
|
|
Case
|
SECC Zinc plated sheet metal (1 mm)
|
|
Ingress Protection Rating
|
IP30
|
|
Mounting
|
1U - 19" rack, front and rear mounting hardware included
|
|
Product Weight and Dimensions
|
|
Product Weight
|
IOLAN SCG18: 3.29 kg / 7.25 lbs
IOLAN SCG34: 3.46 kg / 7.63 lbs
IOLAN SCG50: 3.63 kg / 8 lbs
|
|
Dimensions
|
1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
|
|
Packaging
|
|
Shipping Dimensions
|
59 x 36 x 9cm
|
|
Shipping Weight
|
IOLAN SCG18: 4.23 kg / 9.33 lbs
IOLAN SCG34: 4.40 kg / 9.70 lbs
IOLAN SCG50: 4.57 kg / 10.07 lbs
|
|
Regulatory Approvals
|
|
Emissions
|
FCC 47 Part 15 Subpart B Class A
ICES-003 (Canada)
EN55011 (CISPR11)
EN55032 (CISPR32)
EN61000-3-2 Limits for Harmonic Current Emissions
EN61000-3-3 Limits of Voltage Fluctuations and Flicker
|
|
Immunity
|
EN55024
EN 61000-4-2 (ESD): Contact:
EN 61000-4-3 (RS):
EN 61000-4-4 (EFT):
EN 61000-4-5 (Surge):
EN 61000-4-6 (CS):
EN 61000-4-8 (PFMF)
EN 61000-4-11
|
|
Safety
|
UL/ULC/EN 62368-1 (previously 60950-1)
CAN/CSA C22.2 No. 62368-1-15
|
|
Wireless Regulatory Domain
|
FCC/ICES
ETSI
TELEC
Users are responsible for verifying approval for use in their individual countries.
|
|
Radio Approvals
|
FCC Part 15.247 Subpart C (2.4 Ghz)
FCC Part 15.407 Subpart E (5 Ghz)
RSS-210 (Canada), RSS-Gen Issue 2 (Canada), ICES-003 Issue 4
ETSI EN 301 489-1 (V1.9.2)
ETSI EN 301 489-17 (V2.2.1)
ETSI EN 300 328 (V1.8.1)
ETSI EN 301 893 (V1.7.1)
|
|
Frequency Bands
|
FCC / ICES
2.412 to 2.462 GHz; 11 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz, 8 channels (excluding 5.600 to 5.640 GHz)
5.745 to 5.825 GHz; 5 channels
ETSI
2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 8 channels (excluding 5.600 to 5.640 GHz)
MIC ( formally TELEC )
2.412 to 2.472 GHz; 13 channels
4.920 to 4.980 GHz; 4 channels
5.030 to 5.091 GHz; 3 channels
5.180 to 5.240 GHz; 8 channels
5.500 to 5.700 GHz; 11 channels
|
|
Other
|
Reach, RoHS and WEEE Compliant
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8471.80.1000
Perle Limited Lifetime warranty
|

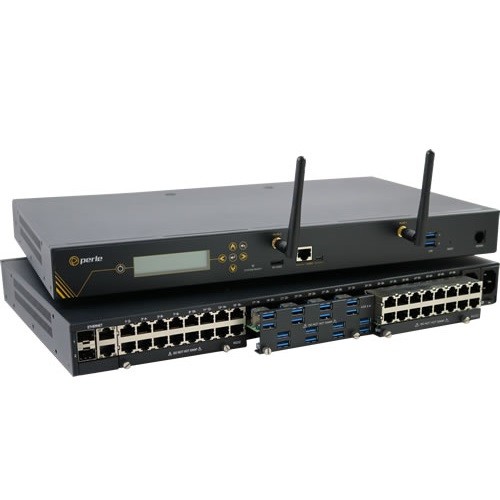

IOLAN SCG WM
