如果需要一种具有成本效益且能够跨以太网保持串行设备协议完整性的 4或8 端口串行 RS232 转以太网解决方案 ，那么工程师和项目经理一定要考虑 IOLAN STG。由于结合最高性能处理器和 Perle 独有的 TrueSerialTM 技术，IOLAN STG 将提供最可靠的跨以太网串行接口。IOLAN STG4-P 串行终端服务器可以通过支持 Power over Ethernet (PoE).

非常适合

工程师和项目经理将高性能的串行到以太网接口用于 4或8 个基于串行 RS232 设备的。通过以太网连接到串行应用程序。
IT 专家使用一种具有成本效益的 4或8 端口终端服务器或串行控制台服务器对位于小型数据中心或远程站点的 IT 设备进行带外管理。

为什么 IOLAN STG 型号是首选

高性能的处理器，提供最佳的吞吐量。最适合对时间敏感的应用
紧凑型型号提供市场上最小的 4或8 端口串行到以太网解决方案
下一代 IP 支持 (IPv6 ) 提供投资保护和网络兼容性
TrueSerial? 数据包交换技术 — 最可靠的跨以太网串行连接确保串行协议的完整性
一旦主 TCP 连接失败，主/备份的主机功能够自动连接到备用主机
EasyPort Web 使用支持 java 的因特网浏览器来访问设备串行控制端口
TruePort — Perle 适用于基于串行应用程序的 com/tty 重定向器在 Windows、Vista、Linux、Solaris、SCO 和 Unix 上运行。
Clustering — 为所有带外控制端口提供单一视图。非常适合于大型数据中心
FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
Dynamic DNS— 无论在哪里都可以通过因特网轻松访问控制台管理
带有 Perle 遥控电源开关的设备智能功率循环功能
Java-free browser access to remote serial console ports via Telnet and SSH
Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
终身保修 — 提供最佳的投资保护

TCP
使用原始 TCP 套接字原始 TCP 套接字连接可由串行以太网设备或者远程主机/服务器建立。这种连接可以是点到点连接，也可以是共享连接，对于后者，多台设备可以共享一台串行设备。TCP 会话可以由 TCP 服务器应用程序或者 Perle IOLAN 串行以太网适配器发起。
UDP
使用原始 UDP 套接字使用基于 UDP 的应用程序时，Perle IOLAN 可以转换串行设备数据，从而在点到点设备或多台共享设备的 UDP 报文之间传输。
控制台服务器
控制台的管理对于访问路由器、交换机等设备上的远程控制台端口，Perle IOLAN 则可以让管理员通过带内反向远程登录 / SSH 或者带外的拨号调制解调器，安全地访问这些 RS232 端口。Perle IOLAN 机型配有集成调制解调器。
COM/TTY
将串行应用程序与 COM/TTY 端口驱动程序相连串行端口可以连接至运行 Perle 的 TruePort 软件（具有虚拟 COM 端口的功能）的网络服务器或工作站。会话可以由 Perle IOLAN 或 TruePort 发起。
隧道
两台串行设备之间的串行隧道利用串行隧道，您可以通过以太网建立连接其他 IOLAN 的串行端口的链路。两个 IOLAN 串行端口必须配置为“串行隧道”（通常情况下，将其中一个串行端口配置为“隧道服务器”，而将另一个串行端口配置为“隧道客户端”）。
虚拟调制解调器
虚拟调制解调器可以使串行以太网适配器模拟调制解调器连接。与 IOLAN 相连并建立调制解调器连接后，IOLAN 开始与另一台配有虚拟调制解调器端口的串行以太网适配器，或者运行 TCP 应用程序的主机建立 TCP 连接。

软件特点 - IOLAN STG Serial Terminal Server

Serial Port Access
	Connect directly using Telnet / SSH by port and IP address
	Connect with EasyPort menu by Telnet / SSH
	Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
	Java-free browser access to remote serial console ports via Telnet and SSH
	Ports can be assigned a specific IP address ( aliasing )
	Multisession capability enables multiple users to access ports simultaneously
	Multihost access enables multiple hosts/servers to share serial ports
Accessibility
	In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
	Dynamic DNS enables users to find a console server from anywhere on the Internet
	Domain name control through DHCP option 81
	IPV6 and IPV4 addressing support
Availability
	Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
	SSH v1 and v2
	PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
	SSL Server and SSL client mode capability
	SSL Peer authentication
	IPSec VPN : NAT Traversal, ESP authentication protocol
	SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
	SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
	Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
	Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
	Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
	X.509 Certificate verification: RSA, DSA
	Certificate authority (CA) list
	Local database
	RADIUS Authentication, Authorization and Accounting
	TACACS+ Authentication, Authorization and Accounting
	LDAP, NIS, Kerberos Authentication
	RSA SecureID-agent or via RADIUS Authentication
	SNMP v3 Authentication and Encryption support
	IP Address filtering
	Disable unused daemons
	Active Directory via LDAP
Terminal Server
	Telnet
	SSH v1 and v2
	Rlogin
	Auto session login
	LPD, RCP printer
	MOTD - Message of the day
Serial machine to Ethernet
	Tunnel raw serial data across Ethernet - clear or encrypted
	Raw serial data over TCP/IP
	Raw serial data over UDP
	Serial data control of packetized data
	Share serial ports with multiple hosts/servers
	Virtual modem simulates a modem connection - assign IP address by AT phone number
	Virtual modem data can be sent over the Ethernet link with or without SSL encryption
	TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here
	TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
	RFC 2217 standard for transport of serial data and RS232 control signals
	Customizable or fixed serial baud rates
	Plug-ins allow customer or Perle provided plug-ins for special applications
	Software Development Kit ( SDK ) available
	Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
	ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
	Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
	Sun / Oracle Solaris Break Safe
	Local port buffer viewing - 256K bytes per port
	External port buffering via NFS, encrypted NFS and Syslog
	Event notification
	Manage AC power of external equipment using Perle RPS power management products
	Clustering - central console server enables access ports across multiple console servers
	Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
	Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
Remote Access
Dial, direct serial	PPP, PAP/CHAP, SLIP
	HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS update	Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
IPSEC VPN client/servers	Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
	Microsoft IPSEC VPN Client ( native to Windows Vista )
	Cisco routers with IPSEC VPN feature set
	Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
	SNMP V3 - read and write, Perle MIB
	Syslog
	Perle Device Manager - Windows based utility for large scale deployments
	Configurable default configuration
	Installation Wizard
	Set a Personalized Factory Default for your IOLANs
Protocols
	IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

邮件规格 - IOLAN STG Serial Terminal Servers

Memory
Processor	600 Mhz ARM processor
RAM MB	512
Flash MB	4000
Interface Ports

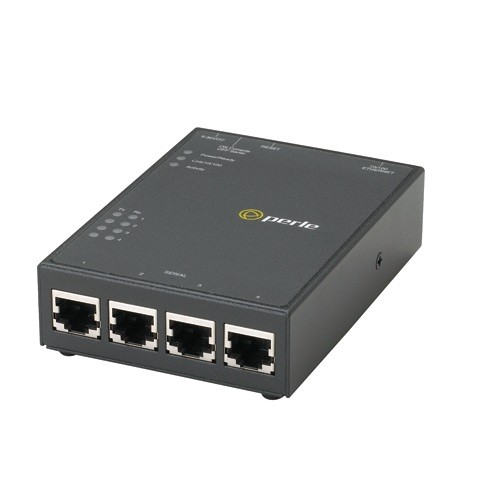

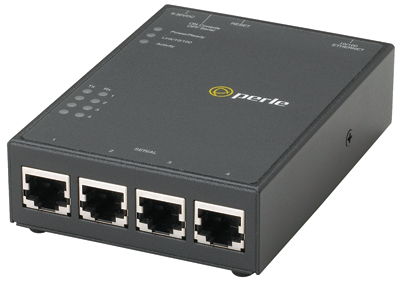

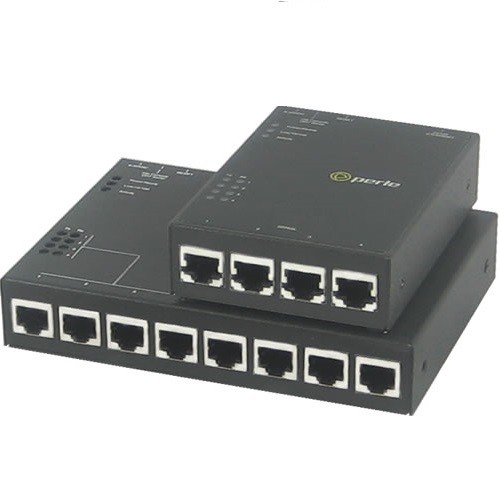

Number of Serial Ports	4 or 8
Serial Port Interface	RS232 DTE on RJ45 (10 pin)
Sun / Solaris	Sun / Oracle ‘Solaris? Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds	300bps to 230Kbps with customizable baud rate support
Data Bits	Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data
Parity	Odd, Even, Mark, Space, None
Flow Control	Hardware, Software, Both, None
Serial Port Protection	15Kv Electrostatic Discharge Protection (ESD)
Local Console Port	RS232 on RJ45 with DB9 adapter (provided)
Network	Network Autosensing 1000Base-T / 100Base-TX / 10Base-T Auto-MDIX
	Software selectable Ethernet speed 10/100/1000 Auto
	Software selectable Half/Full/Auto duplex
Ethernet Isolation	1.5Kv Magnetic Isolation
Power
Power Supply	120 V AC (USA), 230V AC (International) Wall Power Adaptor included
Power Supply Options	Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket
Power Supply Options	4 & 8 Port: Power IN over serial cable
Nominal Input Voltage	12v DC / 24v DC
Input Voltage Range	9-30v DC
Power IOLAN over Serial	4 Port: 9-30v DC 8 Port: 9-30v DC
Power External Device via Serial Port	N/A
Typical Power Consumption @ 12v DC (Watts)	4 Port: 2.0 8 Port: 2.7
Indicators
LEDs	Power/System Ready
	Network Link activity
	Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output (BTU/HR)	4 Port: 16.38 8 Port: 9.20
MTBF (hours)	4 Port: 259,560 8 Port: 171,852
MTBF (hours)	Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature	0C to 55C, 32F to 131F
Storage Temperature	-40C to 85C, -40F to 185F
Humidity	5 to 95% (non condensing) for both storage and operation.
Case	SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating	IP30
Mounting	Wall mount - bracket included
Mounting	DIN Rail bracket optional
Product Dimensions
Weight	4 Port: 0.35 kg (0.77 lbs) 8 Port: 0.55 kg (1.2 lbs)
Dimensions	4 Port: 112 x 82 x 28 (mm), 4.4 x 3.2 x 1.1 (in) 8 Port: 112 x 156 x 28 (mm), 4.4 x 6.1 x 1.1 (in)
Packaging
Shipping Weight	4 Port: .66 kg (1.46 lbs) 8 Port: 1.3 kg (2.9 lbs)
Shipping Dimensions	260 x 170 x 70 (mm), 10.2 x 6.7 x 2.8 (in)
Regulatory Approvals
Emissions	CFR47 FCC Part 15 Subpart B:2015
	ICES-003:2016 Issue 6:2016
	CISPR 32:2015/EN 55032:2015 (Class A)
	EN55011 (CISPR11)
	CISPR 16-2-3:2010/A2:2014
	EN61000-3-2:2014, Limited for Harmonic Current Emissions
	EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker
Immunity	CISPR 24:2010/EN 55024:2010
	EN61000-4-2: 2009 Electrostatic Discharge
	EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated
	EN61000-4-4: 2004 Fast Transients
	EN61000-4-5: 2006 Surge
	EN61000-4-6: 2009 RF Continuous Conducted
	EN61000-4-8: Power-Frequency Magnetic Field
	EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety	IEC 62368-1 and EN 62368-1:2014
Safety	CAN/CSA-C22.2 No. 62368-1-14 and UL 62368-1
Other	Reach, RoHS and WEEE Compliant
	ECCN - 5A992
	HTSUS Number: 8471.80.1000
	Perle Limited Lifetime Warranty

IOLAN RJ45 Serial Connector Pinout
RJ45 Socket	Pinout	Direction	EIA-232
	1		Power In (9-30V DC)
	2	in	DCD
	3	out	RTS
	4	in	DSR
	5	out	TxD
	6	in	RxD
	7		GND
	8	in	CTS
	9	out	DTR
	10		Power Out
Optional Perle adapters for use with straight thru CAT5 cabling

Find IOLAN STS4-D or STS8-D

描述	电源规格	产品料号
IOLAN STG4 Terminal Server: 4 x RJ45 connectors with RS232 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031904
	UK	04031901
	EU	04031902
	AUS	04031906
	None	04031908

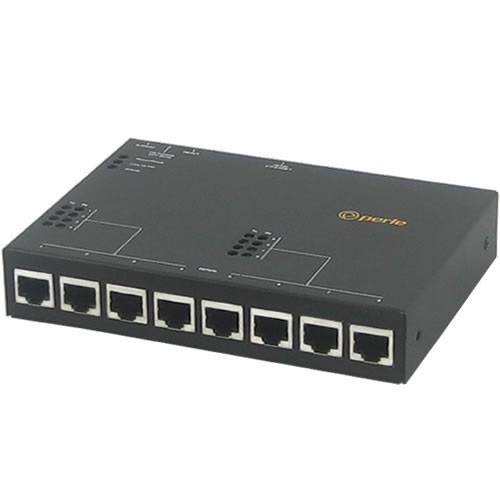

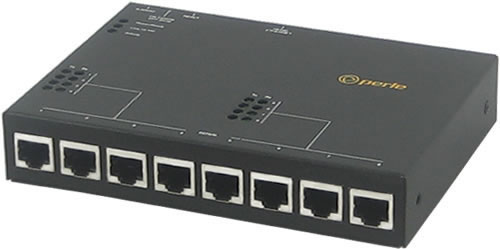

IOLAN STG8 Terminal Server: 8 x RJ45 connectors with RS232 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD	USA	04031894
	UK	04031891
	EU	04031892
	AUS	04031896
	None	04031898
