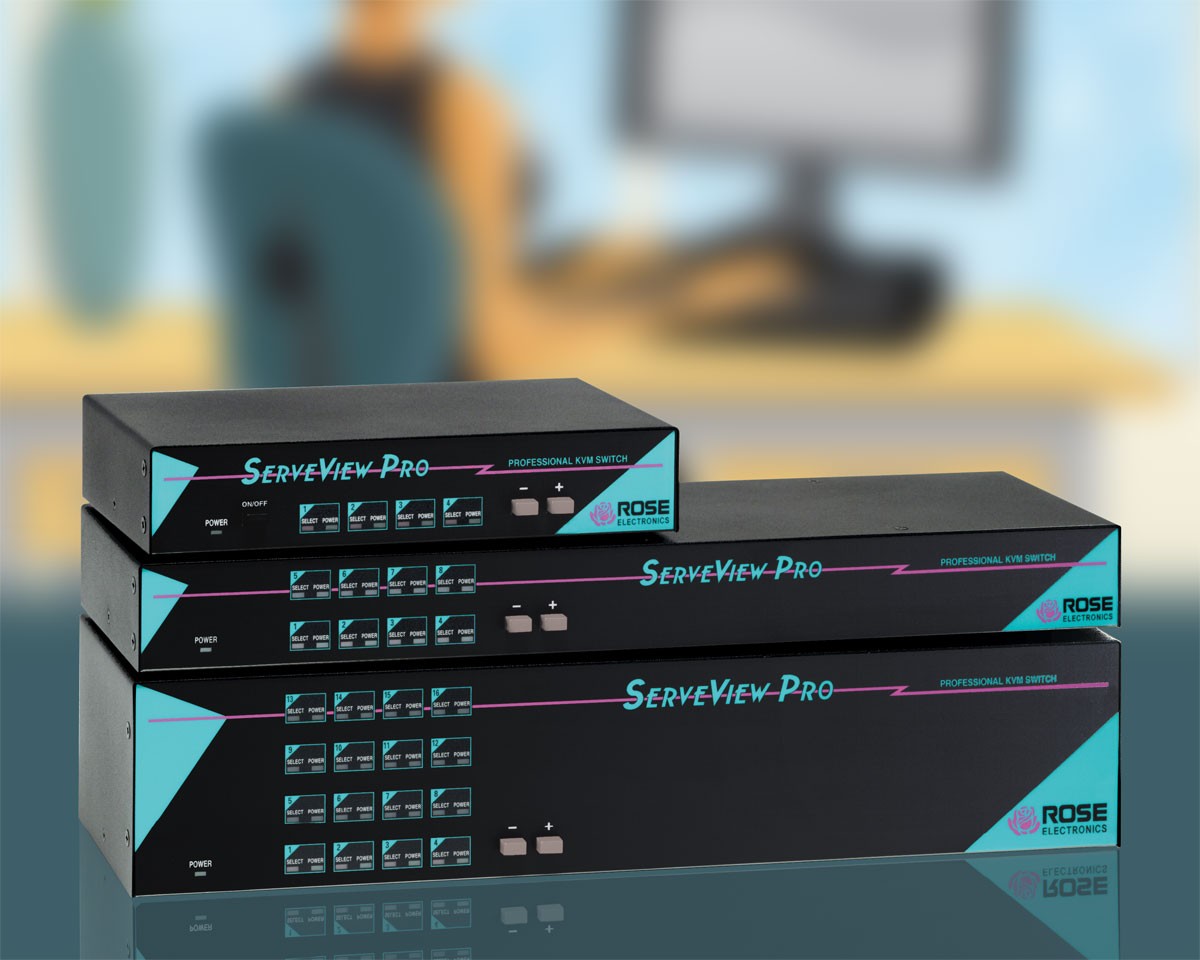

ServeView Pro 是一种易于使用且功能强大的解决方案，可将多台计算机连接到一个键盘、显示器和鼠标。由于没有屏幕菜单，ServeView Pro 是那些需要最简单的系统应用的完美解决方案。它支持高达 1920 x 1200 的视频分辨率。它提供多平台模型，可将 PC、UNIX、Sun 或 Apple 键盘和鼠标数据转换到任何其他平台，并额外支持模拟音频和串行触摸屏。

它也是 UltraView Pro 切换器的完美伴侣，用于连接单元进行扩展。 ServeView Pro 是 UltraView Pro 单元的兼容且廉价的替代品，因为扩展单元不需要屏幕菜单功能，因此可以节省资金。

ServeView Pro 提供在坚固的金属机箱中，非常适合需要将电缆拧到开关上并且可以最大限度地减少电磁干扰的工业和危险应用。

ServeView Pro 可以连接到具有 VGA/PS2 或 VGA/USB 接口或两种类型混合的 PC/服务器。用户站可以是 VGA/USB 或 VGA/PS2，接口由不同的电缆类型提供。

ServeView Pro 有 3 种机箱尺寸：

2 或 4 端口 M 机箱
4 或 8 端口 B 机箱
4、8、12 或 16 端口 C 机箱

所有型号都具有链式扩展端口数量的能力。

PART NUMBERS

Product Part Number	Description
SPM-2UB	ServeView Pro, 1x2 KVM Switch, PC-UNIX, M Chassis 1U
SPM-4UB	ServeView Pro, 1x4 KVM Switch, PC-UNIX, M Chassis 1U
SPB-4UB	ServeView Pro, 1x4 KVM Switch, PC-UNIX, B Chassis 1U
SPB-8UB	ServeView Pro, 1x8 KVM Switch, PC-UNIX, B Chassis 1U
SPC-16UB	ServeView Pro, 1x16 KVM Switch, PC-UNIX, C Chassis 2U
SEM-2UB	ServeView Pro, 1x2 KVM Switch, Multi-Platform, M Chassis 1U
SEM-4UB	ServeView Pro, 1x4 KVM Switch, Multi-Platform, M Chassis 1U
SEB-4UB	ServeView Pro, 1x4 KVM Switch, Multi-Platform, B Chassis 1U
SEB-8UB	ServeView Pro, 1x8 KVM Switch, Multi-Platform, B Chassis 1U
SEC-16UB	ServeView Pro, 1x16 KVM Switch, Multi-Platform, C Chassis 2U
/OV suffix	On-screen display option
RM-UMxx	Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24")
RM-UBxx	Rack Mount kit, 1U, B Chassis (xx = 19", 23", or 24")
RM-UCxx	Rack mount kit, 2U, C Chassis (xx = 19", 23", or 24")
Cable Part Number	Description
CAB-ZX0606Cnnn	UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-ZX0606CAnnn	UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio
CAB-CX0606Cnnn	UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606CAnnn	UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio
CAB-C1V060609Cnnn/S3	Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Serial Touch Screen
CAB-CY0509Cnnn	UltraCable Hi-Res, PC to Switch, DB25M to VGA-AT Keyboard + Serial Mouse
CAB-CXV0800Cnnn	UltraCable Hi-Res, Sun to Switch, DB25M to VGA-Sun Keyboard + Mouse

Dimensions (W x D x H)	M Chassis: 8.8" x 4.85" x 1.75" (223 x 123 x 44.5 mm) (1U) B chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) C chassis: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm) (2U)
Weight	M Chassis: 4 lb (1.8 kg) B chassis: 6 lb (2.7 kg) C chassis: 8 lb (3.6 kg)
Power	90-240 VAC 50-60Hz M chassis: External adapter, +5V, 2A B/C-chassis: Internal M Chassis: 15W B chassis: 25W C chassis: 30W
Resolution	VGA: 1920 x 1200
Distance	CPU/KVM: 25 feet (7.6m)
Connectors	Power: 8-16 port: IEC320, 4-port: DIN5 CPU/KVM: DB25F RS232: RJ 6-conductor
Controls	Computer selection: Front panel, hot-key, serial port Unit Power: Green LED CPU power: Green LED per port CPU select: Red LED per port Prev computer: Push-button - Next computer: Push-button +
Environment	Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing
