Processor
|
Intel Core i5 10500T
|
Mainboard
|
GA-IMB410TN (rev. 1.0) / Intel® H410 Express Chipset
|
RAM
|
2x 4 GB DDR4 (max. 32 GB)
|
Hard drive
|
250 GB Samsung SSD, m.2
|
Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x D-Sub port (Optional and share with one HDMI1.4 Port, Default support HDMI)
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
3. 2 x HDMI 1.4a, supporting a maximum resolution of 4096 x 2160@30 Hz
Support for up to 2 displays at the same time
Maximum shared memory of 1 GB
|
Compatible OS
|
MS Windows 10 Home/Pro/Enterprise, MS Windows 10 IoT Embedded Enterprise, Ubuntu Linux
|

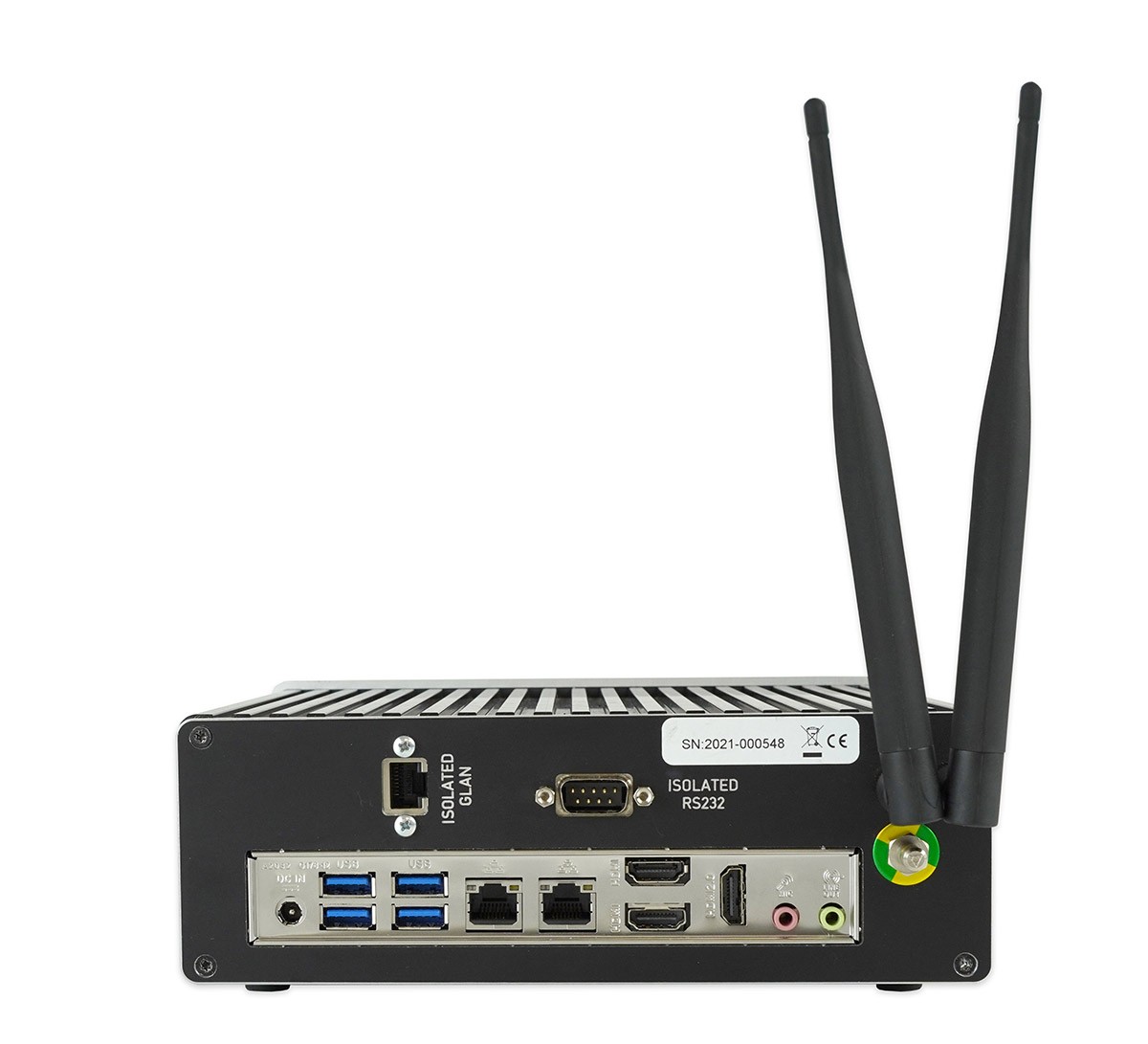

External interfaces rear
|
4x USB 3.0, 2x RJ45 (Intel GLAN), 3x HDMI, 2x audio,
additional IOs: 1x RS232 (DB9), 4 kV isolation for min. 1Min,
1x RJ45 (Intel GLAN) 5 kV isolation with integrated isolator (Baaske MI1005E)
|
WLAN
|
Intel dual-band WLAN module 802.11 b/g/n/ac with 2x combo antenna for 2.4 and 5GHz, 5dBi
|
Power supply
|
Power in DC input 12 V, 5.5 x 2.5 mm plug (standard), or wide range input: 19-24 V DC
|
Power consumption
|
Idle 10W, 100% load ~45 W
|
Cooling system
|
Heatpipe cooling system
|
Case
|
All-aluminum heat sink profile housing, black anodized, front panel natural anodized
|
Dimensions
|
218 x 222 x 77 mm
|
Mounting possibilities
|
VESA bracket & DIN rail DIN-/ Wall mounting bracket
|
Weight
|
2 kg
|
Temperature
|
0 to 45°C (operation)
|
Humidity
|
90% rel. air humidity
|
Protection class
|
IP65 protection class on 5 sides (rear side without additional IP protection)
|
Standards
|
CE, RoHS
|
Item no.
|
2012643
|
