TC EXTENDER 通过单根双绞线 (CAT5/6/7)、同轴电缆或以前用于警报电路、E1/T1 电路、RS-232、RS-422、RS 的任何现有铜线，透明地将以太网数据传输扩展到 20 公里-485、CCTV 和 CATV 应用。

铜线长距离以太网传输
SHDSL 是通过网络的长距离铜线传输数字数据的首选技术。尽管性能取决于所用电缆的特性，但 SHDSL 的覆盖范围比目前可用的任何其他 DSL 技术都要远得多。此外，上传和下载带宽是对称的，2 线铜线的数据速率高达 15.3 Mbps，4 线铜线的数据速率高达 30 Mbps。

TC EXTENDER 是协议透明的。借助两个 SHDSL 端口，您可以轻松设置范围达 20 公里的点对点、线性或环形网络结构。这些简单而有效的以太网扩展器非常适合工业环境、商业建筑、住宅单元、酒店环境，将远程办公室或专用网络骨干网连接到公司 LAN……任何需要在分离的 LAN 或 LAN 设备（即 PC）之间建立以太网通信链路的地方、数字传感器、VoIP 电话、WiFi AP、IP 摄像头等）。

两个软件可配置数字输出可用于外部设备警报生成。

对于“即插即用”长距离以太网数据传输，TC EXTENDER 2001 ETH-2S 是理想的解决方案。

长距离以太网扩展器功能

单对线高速数字用户线(SHDSL)
面向未来（IPv4 和 IPv6 兼容）
自动检测网线类型（auto MDI(X)）
自动网络数据速率检测 (10/100 Mbps)
轻松启动，即插即用
两个报警和信号输出

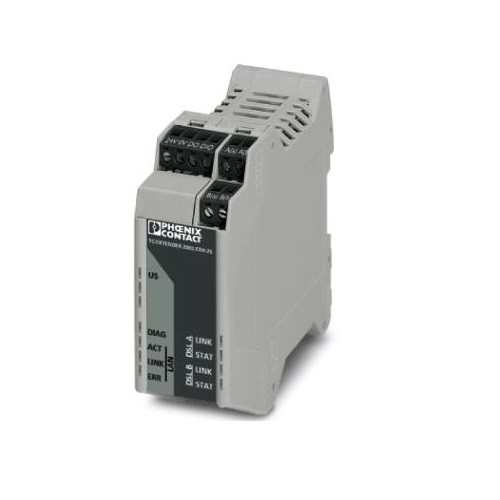

TC EXTENDER 2001 ETH-2S

Serial interface
Interface 1	Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
Interface	Ethernet
Connection method	RJ45 socket, shielded
Connection method	1 port 10/100Base-T(X), auto negotiation
Transmission length	< 100 m (shielded twisted pair)
Protocols supported	Protocol-transparent for TCP/IP, IPv4, and IPv6
Serial transmission speed	10/100 Mbps, auto negotiation
Interface 2	SHDSL interface according to ITU-T G.991.2.bis
No. of channels	2 (2-wire operation)
Connection method	2 x 2-pos. COMBICON plug-in screw terminal blocks
Transmission length	< 20 km (Depending on data rate and cable cross section)
Conductor cross section solid min.	0.2 mm?
Conductor cross section solid max.	2.5 mm?
Conductor cross section flexible min.	0.2 mm?
Conductor cross section flexible max.	2.5 mm?
Conductor cross section AWG min.	24
Conductor cross section AWG max.	14
Serial transmission speed	4-wire operation: 64 kbps ... 30 Mbps
Serial transmission speed	2-wire operation: 32 kbps ... 15.3 Mbps
Interface 3	USB 2.0
Connection method	Mini-USB type B, 5-pos.
Transmission length	< 5 m (only for configuration and diagnostics)
Digital outputs
Output name	Digital output
Number of outputs	2
Voltage output signal	depending on the operating voltage
Current output signal	≤ 150 mA (Short-circuit-proof)
Connection method	2 x 2-pos. COMBICON plug-in screw terminal blocks
Behavior of the outputs	Deactivated for device supply via DIN rail connector
Function
Management	Plug and Play, diagnostics via PSI-CONF software or web-based management (only with managed Ethernet extenders)
Status and diagnostic indicators	LEDs: US (supply voltage), ACT/LINK (Ethernet data traffic), ERR (errors)
Status and diagnostic indicators	2x LINK / 2x STAT (DSL data traffic port A and port B), DIAG (diagnostic messages)
Ambient Conditions
Ambient temperature (operation)	-20 °C ... 60 °C (Freestanding (40 mm spacing to the right and left), no supply of other modules via the device)
	-20 °C ... 55 °C (Mounted in rows with zero spacing and low power dissipation of aligned modules)
	-20 °C ... 50 °C (Mounted in rows with zero spacing)
	-20 °C ... 45 °C (Mounted in rows with zero spacing and supply of other modules via the device)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 95 % (non-condensing)
Altitude	5000 m (For restrictions see manufacturer?s declaration)
Degree of protection	IP20
General
Electrical isolation	VCC // Ethernet // DSL (A) // DSL (B) // FE
Test voltage data interface/power supply	1.5 kVrms (50 Hz, 1 min.)
Standards/regulations	EN 50121-4
Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Net weight	258.7 g
Housing material	PA 6.6-FR
Color	gray
MTTF	711 Years (SN 29500 standard, temperature 25°C, operating cycle 21 % (5 days a week, 8 hours a day))
	308 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
	125 Years (SN 29500 standard, temperature 40°C, operating cycle 100 % (7 days a week, 24 hours a day))
Conformance	CE-compliant
Power supply
Nominal supply voltage	24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
Nominal supply voltage	5 V DC (configuration only, via mini-USB type B)
Supply voltage range	18 V DC ... 30 V DC
Typical current consumption	< 180 mA (24 V DC)
Connection method	COMBICON plug-in screw terminal block
Dimensions
Width	35 mm
Height	99 mm
Depth	114.5 mm
Environmental Product Compliance
China RoHS	Environmentally Friendly Use Period = 50
Reach and RoHS Compliant	Reach and RoHS Compliant
Standards and Regulations
Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Vibration resistance	In acc. with EN 60068-2-6/IEC 60068-2-6 Result: 5g, 10...150 Hz, 2.5 h, in XYZ direction
Shock	In acc. with EN 60068-2-27/IEC 60068-2-27 Result: 15g
EMC Immunity	EN 61000-4-2: Contact discharge ± 6 kV, Indirect discharge ± 6 kV EN 61000-4-3: Frequency range 80 MHz ... 3 GHz EN 61000-4-4: Criterion B EN 61000-4-5: Signal ± 1 kV (asymmetrical, shielded Ethernet cable) EN 55011 EN 61000-4-6: Frequency range 0.15 MHz ... 80 MHz EN 50121-4
Conformance	CE-compliant
ATEX	II 3 G Ex nA IIC T4 Gc X
UL, USA/Canada	cULus listed UL 508
Approvals
	UL Listed cUL Listed ATEX cULus Listed
Commercial data
Packing unit	1
Weight per piece	0.0 g
Country of origin	Germany

Description	Power Cord	Product Number
TC EXTENDER 2001 ETH-2S - Long Range Ethernet Extender. 1 port 10/100Base-TX (RJ-45) . SHDSL via 4-pin terminal blocks. Links up to 20km - requires external DC power supply	None	27024098
TC EXTENDER 2001 ETH-2S - Long Range Ethernet Extender. 1 port 10/100Base-TX (RJ-45) . SHDSL via 4-pin terminal blocks. Links up to 20km – 24VDC, 18W USA wall power adapter with tinned leads included	USA	27024094
TC EXTENDER 2001 ETH-2S - Long Range Ethernet Extender. 1 port 10/100Base-TX (RJ-45) . SHDSL via 4-pin terminal blocks. Links up to 20km – 24VDC, 18W UK wall power adapter with tinned leads included	UK	27024091
TC EXTENDER 2001 ETH-2S - Long Range Ethernet Extender. 1 port 10/100Base-TX (RJ-45) . SHDSL via 4-pin terminal blocks. Links up to 20km – 24VDC, 18W EU wall power adapter with tinned leads included	EU	27024092

点对点连接
两个设备之间的最大距离为 20 公里。以太网扩展器会自动识别路径是构建在 2 线还是 4 线路径上。如果设备检测到 4 线线路，则传输速率会根据线路质量自动增加（通常加倍）。如果其中一个连接发生故障，则数据通过其余导体以单一传输速度传输。这样，就支持了可靠的冗余操作。
线路架构
两个设备之间的最大距离为 20 公里。
星型架构
由于每个设备都有两个 SHDSL 端口，因此您只需要三个设备。
冗余的环形结构
冗余环显着提高了系统的整体可用性。两个设备之间的最大距离为 20 公里。您可以在一个环中集成多达 50 个设备。如果出现环网中断，则可以在以下响应时间后再次进行以太网通信：tRecovery = 600 ms + 设备数量 x 100 ms。 SHDSL 环的路径在正常运行期间应该表现出非常高的连接质量。如果不是这种情况，反应时间可能会偏离上面计算的值。
旋转应用中的冗余数据通信
以太网扩展器通过 4 线连接。因此冗余建立了连接。使用以太网扩展器上的两个数字输出，您可以监控滑环通信。
范围
最大可能的 SHDSL 数据速率取决于几个参数。两个重要参数是电缆长度和电缆横截面。此图说明了最大 SHDSL 数据速率与 3 种电缆类型的线路长度的相关性。使用更大直径的高质量电缆可以实现更长的距离。 TC EXTENDER 通过 2 线铜线实现 32 kbps 至 15.3 Mbps 的数据速率。通过 4 线铜线可以实现高达 30 Mbps 的数据速率。图 1：SHDSL 数据速率取决于距离，2 线
