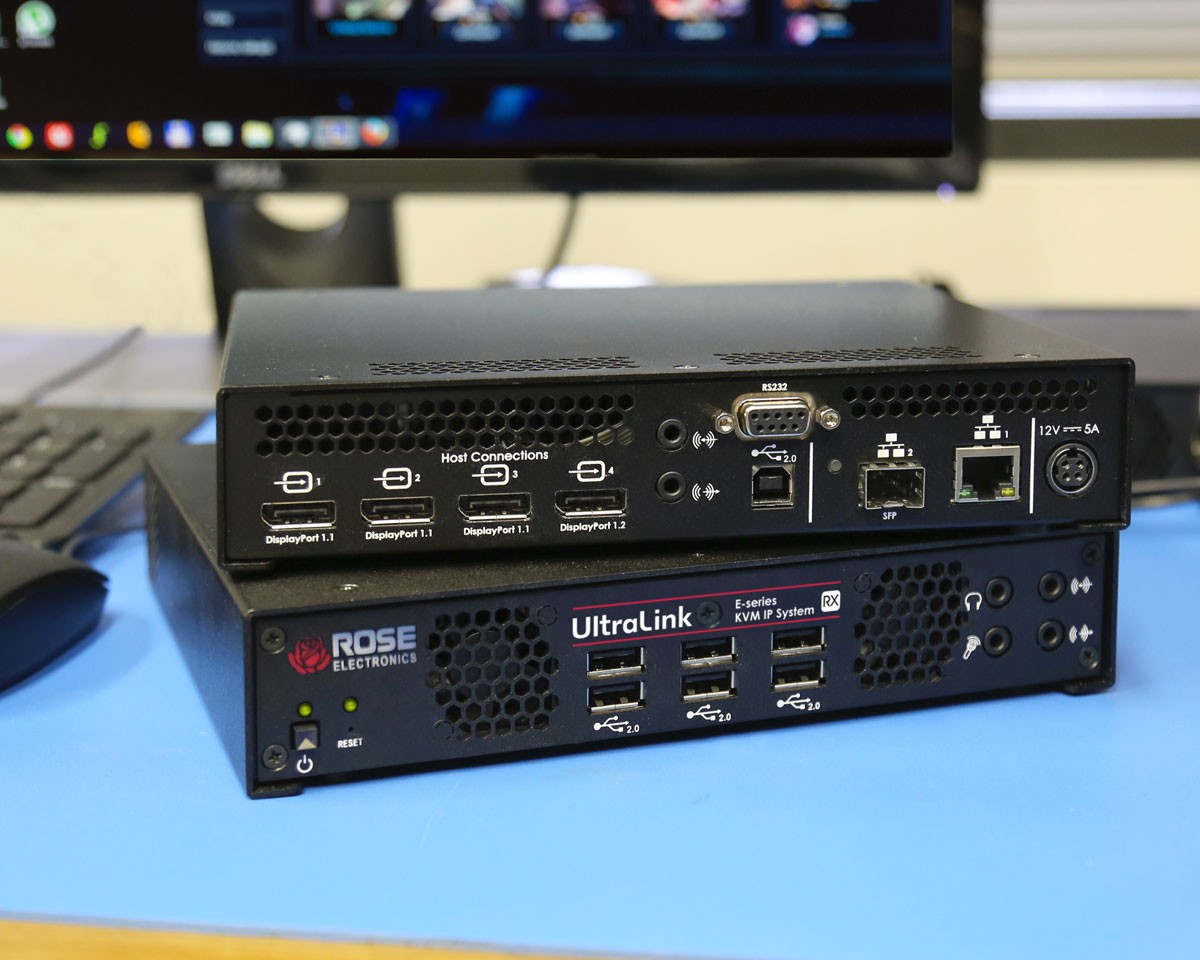

UltraLink E 系列是可扩展的高性能 KVM 和 AV 扩展和切换系统。发射器和接收器单元可以直接相互连接以实现点对点扩展，或者它们可以链接到标准千兆以太网交换机以形成分布式矩阵交换系统。通过 IP 创建可扩展的 KVM 矩阵，提供多种视频、键盘、鼠标、USB 2.0、串行和音频信号。

UltraLink E 系列以前所未有的低比特率提供 4K60 4:4:4 超高清视频性能和多显示功能。扩展器能够将 3840×2160 @ 60Hz 传输到单个显示器，将 3840×2160 @ 30Hz 传输到两个显示器（双头），并将 1920×1200 @ 60Hz 传输到四个显示器（四头），全部通过单个 Cat5e或光缆。 Cat5e 电缆是标准的或可选升级为多模或单模光纤。本产品提供双显示器或四显示器型号。立体声输出可在解嵌或直通模拟音频之间进行选择。

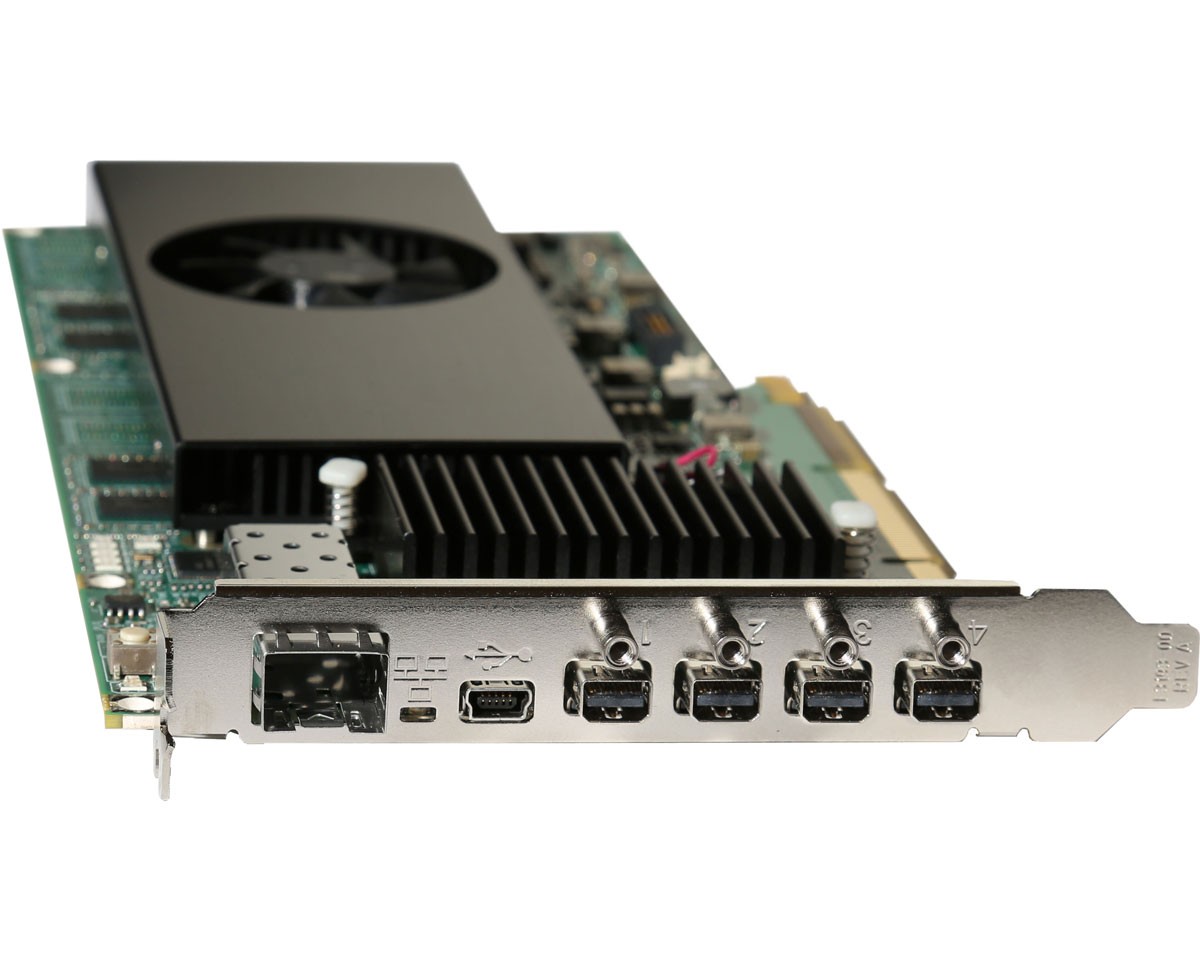

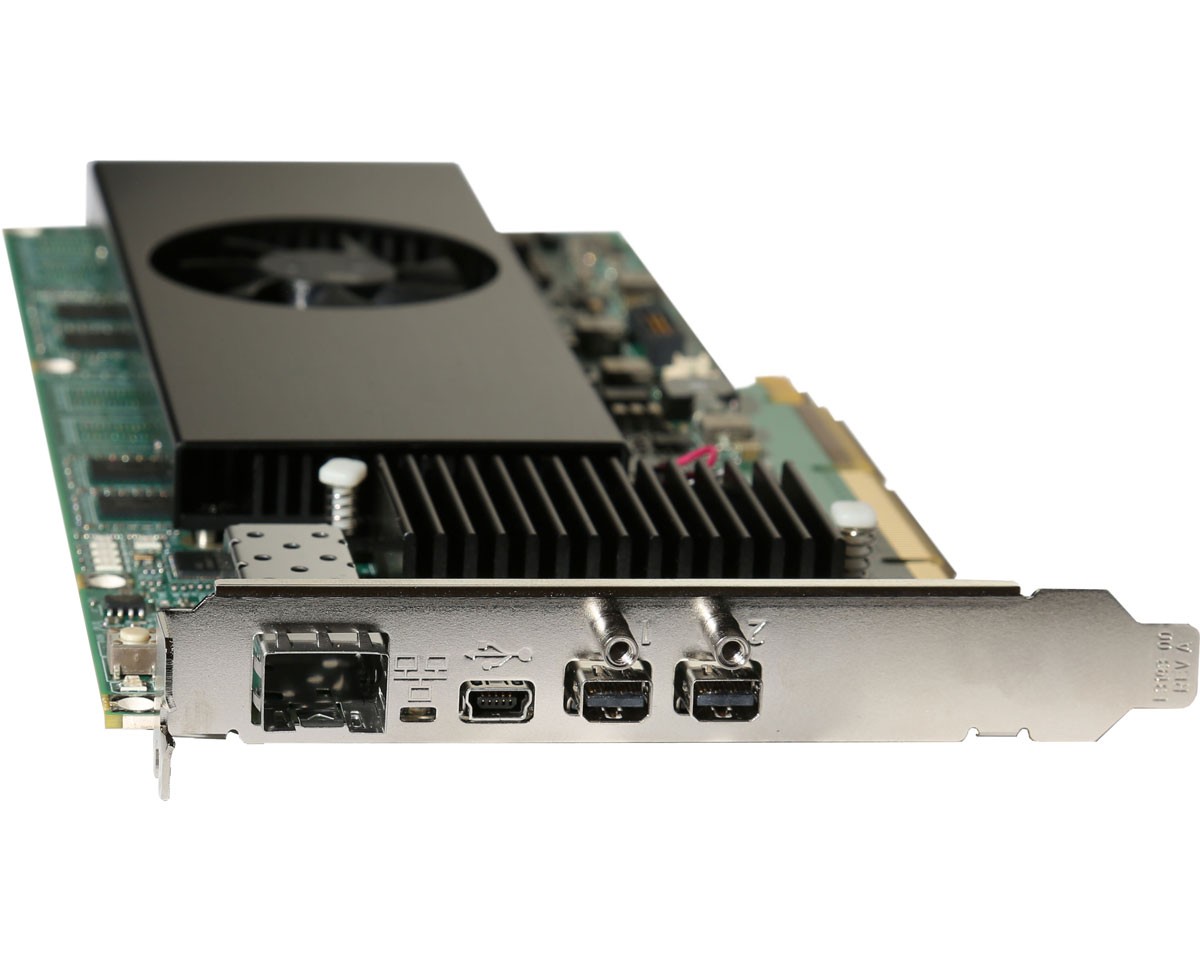

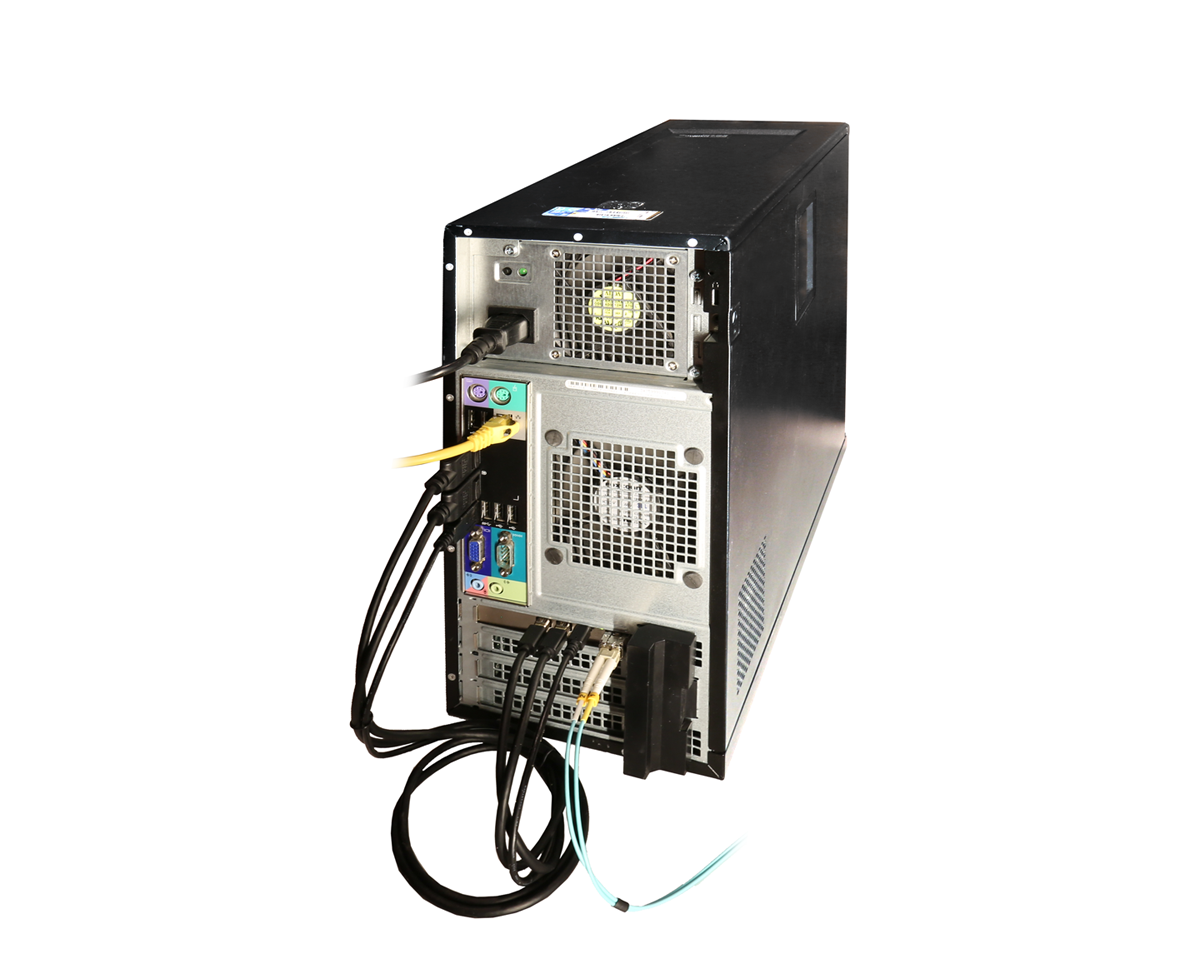

发射器也可作为 PCIe 卡安装在 PC 机箱内。 PCIe 卡具有 mini DisplayPort 和 mini USB 连接器。它们没有串行或音频端口。

Rose UltraLink 设备管理器软件用于从中央位置远程配置、管理和监控所有连接的设备。通过直观的界面，发现联网的发射器和接收器单元、管理连接并设置设备参数。为设备分配易于记忆的名称以轻松识别它们，并创建设备的逻辑组以过滤视图并将设置同时应用于多个设备。该软件使用安全通信协议 (HTTPS) 运行，用于通过网络发送命令。

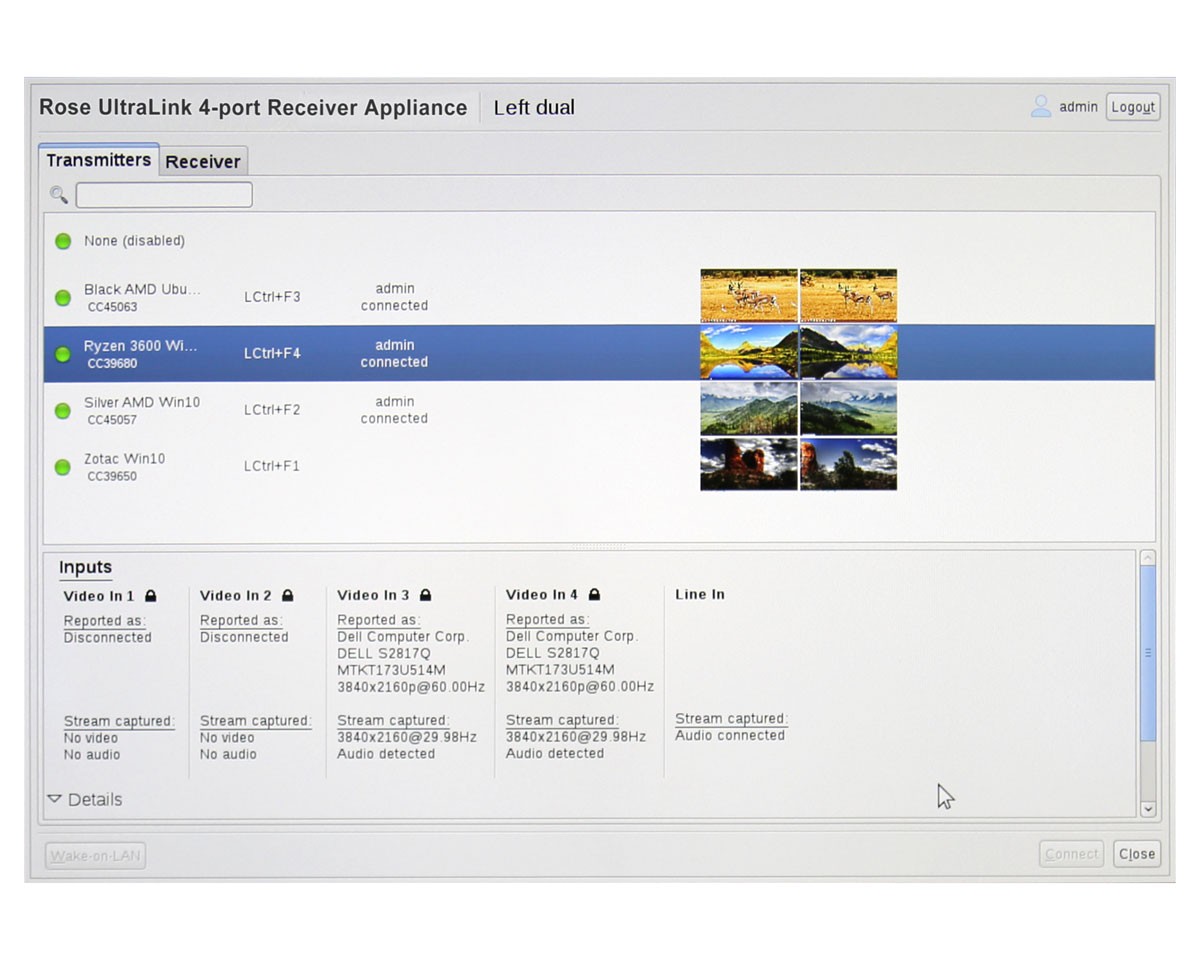

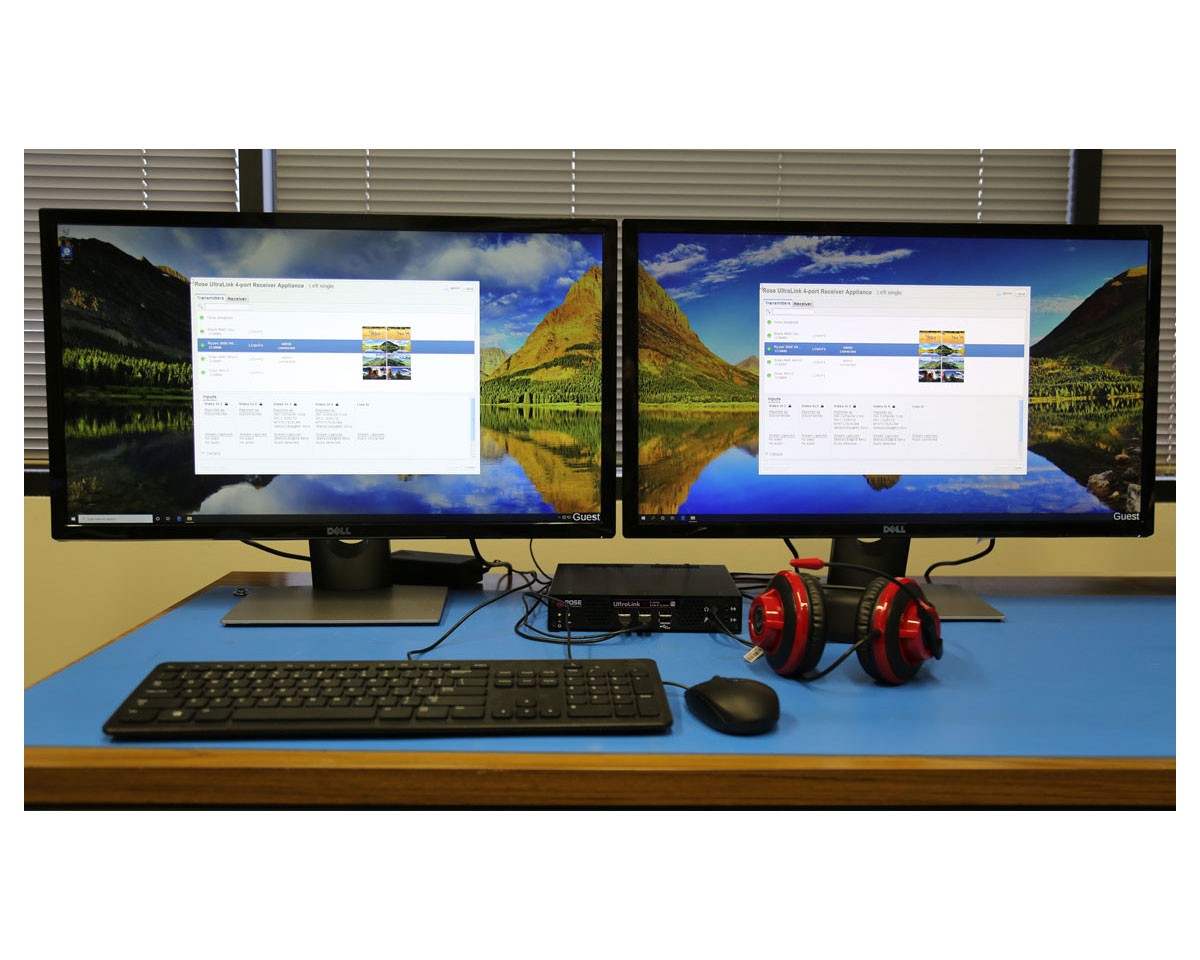

要从 KVM 站进行远程访问，请打开屏幕显示 (OSD) 界面以选择并在主机系统之间即时切换。可用和授权计算机的缩略图预览显示在 OSD 菜单中。

Rose KVM 扩展器有助于集中服务器机房中的硬件，以提高安全性，保护系统免受环境危害，并减少系统噪音和热量排放。使用商用现货 (COTS) 网络交换机的基于 IP 的系统还显着降低了购买可扩展 KVM 矩阵切换解决方案的成本。 UltraLink E 系列扩展器非常适合过程控制、工业自动化、医疗保健、运输、军事、政府、广播、教育和更多应用。

PART NUMBERS

Part Number	Description

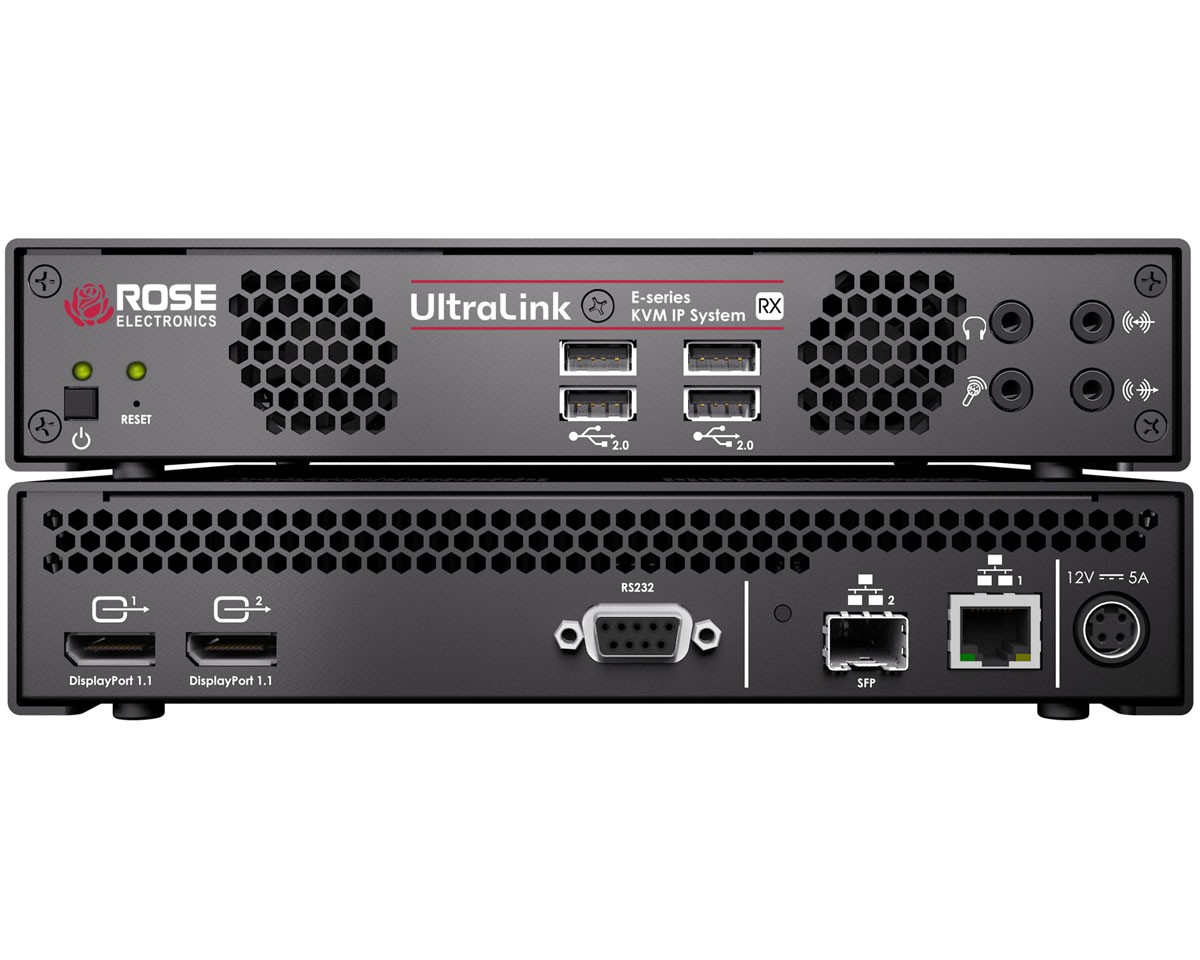

ULE-RXA2	UltraLink E-Series Receiver unit, 2 DisplayPort 1.1, 4 USB type-A, resolution up to 1080p/60 4:4:4

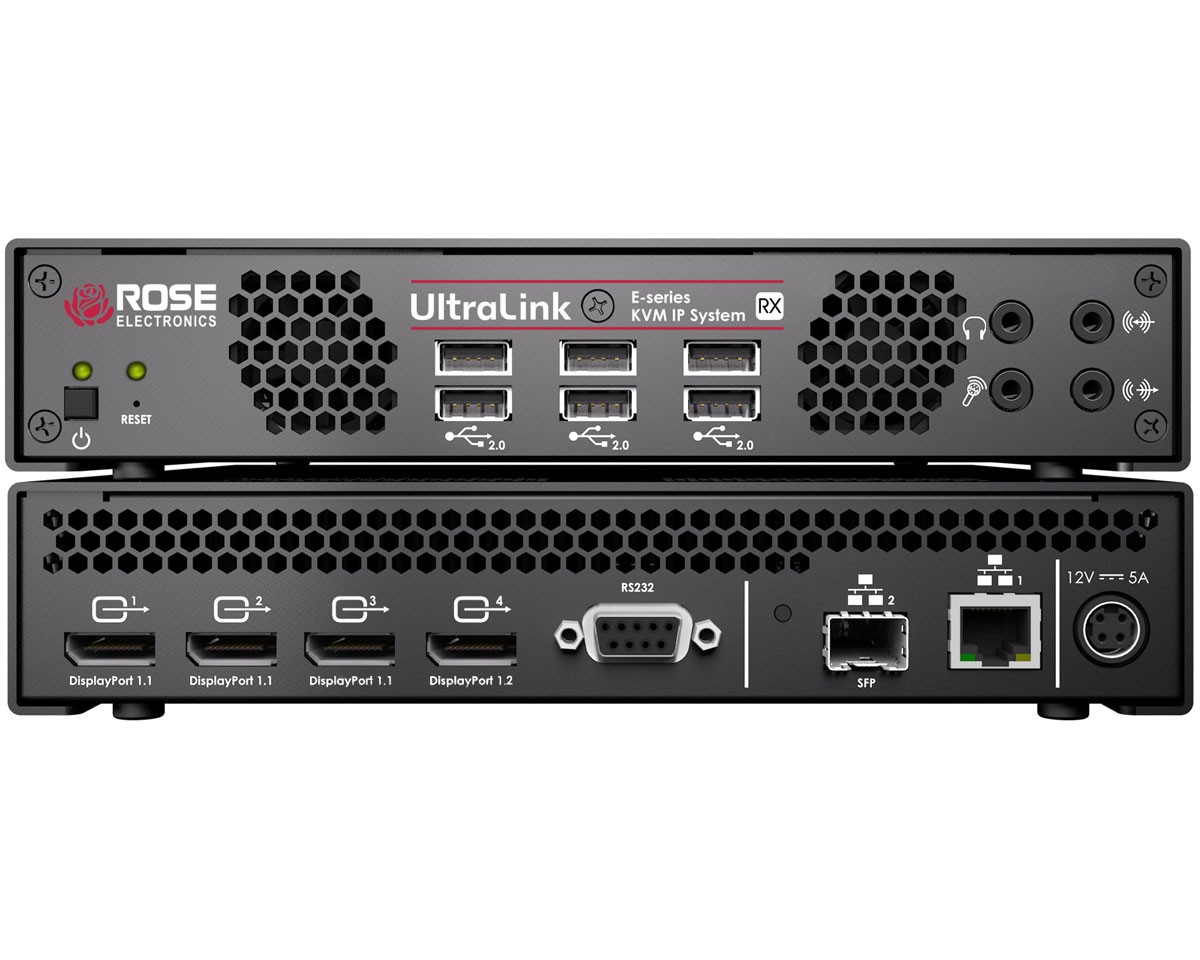

ULE-RXA4	UltraLink E-Series Receiver unit, 3 DisplayPort 1.1 and 1 DisplayPort 1.2, 6 USB type-A, resolution up to 4K/60 4:4:4

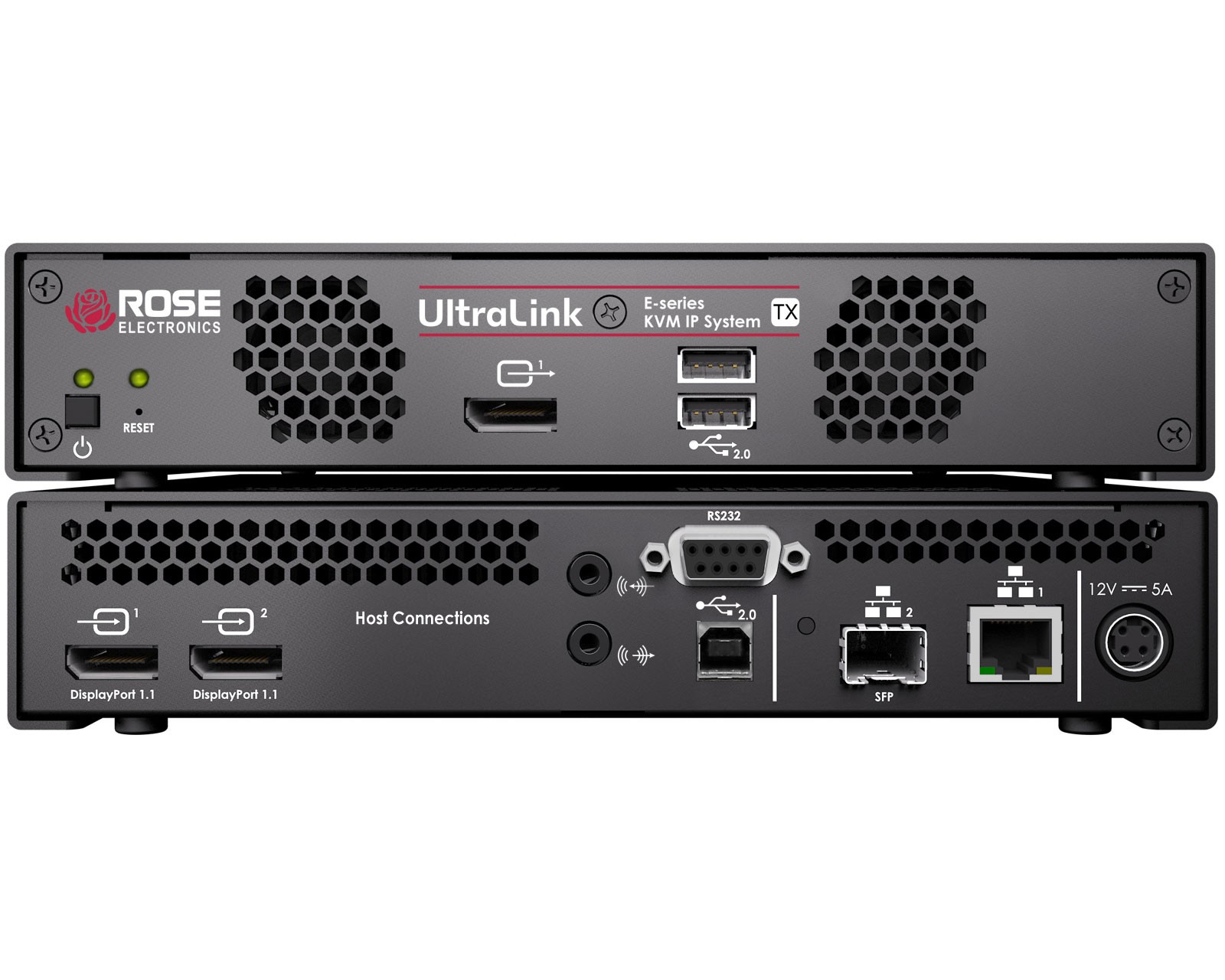

ULE-TXA2	UltraLink E-Series Transmitter unit, 2 DisplayPort 1.1 (in), 1 DisplayPort 1.1 (local out), 1 USB-B (input), 2 USB-A (local), resolution up to 1080p/60 4:4:4

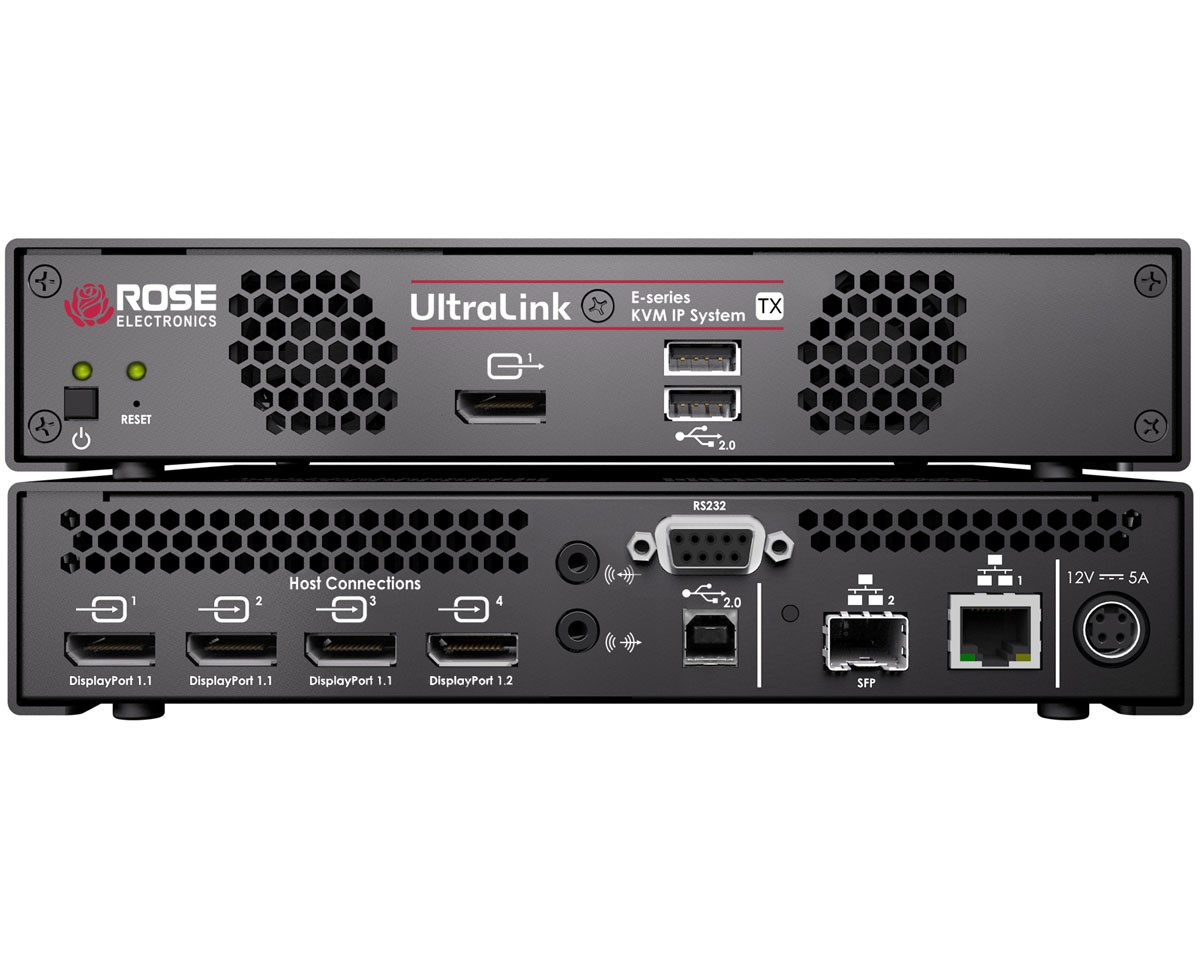

ULE-TXA4	UltraLink E-Series Transmitter unit, 3 DisplayPort 1.1 and 1 DisplayPort 1.2 (in), 1 DisplayPort 1.1 (local out), 1 USB-B (input), 2 USB type-A (local), resolution up to 4K/60 4:4:4 (3840×2160)
ULE-TXC2	UltraLink E-Series PCIe Transmitter card, 2 Mini DisplayPort 1.1 (in), 1 USB 2.0 Type Mini-B, resolution up to 1080p/60 4:4:4
ULE-TXC4	UltraLink E-Series PCIe Transmitter card, 3 Mini DisplayPort 1.1 (in), 1 Mini DisplayPort 1.2 (in), 1 USB 2.0 Type Mini-B, resolution up to 4K/60 4:4:4 (3840×2160)
ULE-UDMxxx	UltraLink E-Series Device Manager software where xxx is version
RM-ULE2	Rack-mount shelf (for 2 Appliances side-by-side) and mounting kit

SPECIFICATIONS

Dimensions (W x D x H)
Appliance models	8.53" x 7.45" x 1.68" (216.6 x 189 x 42.6 mm) (1U)
Card models	9" x 4" x 0.5" (228.6 x 101.6 x 12.7 mm) PCIe full height 3/4 length form factor
Weight
Appliance models	5 lb (2.3 kg)
Card models	3 lb (1.4 kg)
Power
Appliance models	External adapter 100-240 VAC 50-60Hz +12V, 5.0A Typical power 2-port TX ? 24W 2-port RX ? 26W 4-port TX ? 44W 4-port RX ? 41W
Card models	From host computer Typical power 2-port TX ? 32W 4-port TX ? 41W
Resolution
2-port models	Single head 1x 2560×1600@60 1x 3840×2160@30 Dual head 2x 1920×1200@60
4-port models	Single head 1x 3840×2160@60 Dual head 2x 3840×2160@30 2x 2560×1600@60 1x 3840×2160@60 + 1x 1920×1080@60 Quad head 4x 1920×1200@60
Color space
All models	YUV 444 / RGB 888
Audio
All models	DisplayPort audio de-embed to speakers in display or analog audio
Appliance models	Transmitter Stereo 3.5mm analog line-in/line-out Receiver Stereo 3.5mm analog line-in/line-out Microphone and headphone
Network
Standard	1000BASE-T Ethernet
Duplex	Half or full
Brodcast	Unicast or multicast
IPv4 Addressing	DHCP or static IP
Dual LAN redundancy	Appliance models only
SFP cage	Accepts standard SFP modules Copper, Single-mode, or Multi-mode fiber
Included cables
Card models	USB-A to mini-B male-to-male 2 ft cable
Appliance models	USB A to B male-to-male 6 ft cable AC power cord
Distance
All models CPU/KVM cables	10 feet (3.0m)
Appliance models RJ45 LAN	330 feet (100m)
All models SFP cage	Copper – 330 feet (100m) Multi mode fiber – 1800 feet (550m) Single mode fiber – 49.7miles (80km)
Connectors
2-port Transmitter PCIe Card	2 x Mini DisplayPort 1.1 1 x Mini USB 2.0 Type B 1 x Mini USB 2.0 Type B 1 x SFP Cage (copper or fiber) PCI Express x8 electrical PCI Express x16 mechanical
4-port Transmitter PCIe Card	3 x Mini DisplayPort 1.1 1 x Mini DisplayPort 1.2 1 x Mini USB 2.0 Type B 1 x SFP Cage (copper or fiber) PCI Express x8 electrical PCI Express x16 mechanical
2-port Transmitter Appliance	2 x DisplayPort 1.1 1 x DisplayPort 1.1 (local output) 1 x USB 2.0 Type B 2 x USB 2.0 Type A (local output) 1 x 3.5 mm stereo jack, line in 1 x 3.5 mm stereo jack, line out 1 x RS232 9 Pin D-Type 1 x RJ45 Network Port 1 x SFP Cage (copper or fiber) 1 x DC power jack, 4-pin mini-din
4-port Transmitter Appliance	3 x DisplayPort 1.1 1 x DisplayPort 1.2 1 x DisplayPort 1.1 (local output) 1 x USB 2.0 Type B 2 x USB 2.0 Type A (local output) 1 x 3.5 mm stereo jack, line in 1 x 3.5 mm stereo jack, line out 1 x RS232 9 Pin D-Type 1 x RJ45 Network Port 1 x SFP Cage (copper or fiber) 1 x DC power jack, 4-pin mini-din
2-port Receiver Appliance	2 x DisplayPort 1.1 4 x USB 2.0 Type A 1 x 3.5 mm stereo jack, line in 1 x 3.5 mm stereo jack, line out 1 x 3.5 mm stereo jack, speaker (out) 1 x 3.5 mm stereo jack, mic (in) 1 x RS232 9 Pin D-Type 1 x RJ45 Network Port 1 x SFP Cage (copper or fiber) 1 x DC power jack, 4-pin mini-din
4-port Receiver Appliance	3 x DisplayPort 1.1 1 x DisplayPort 1.2 6 x USB 2.0 Type A 1 x 3.5 mm stereo jack, line in 1 x 3.5 mm stereo jack, line out 1 x 3.5 mm stereo jack, speaker (out) 1 x 3.5 mm stereo jack, mic (in) 1 x RS232 9 Pin D-Type 1 x RJ45 Network Port 1 x SFP Cage (copper or fiber) 1 x DC power jack, 4-pin mini-din
Controls
Computer selection	OSD, UltraLink Device Manager program
LED indicators	Appliance models – Status, power, and network Card models – Status and network
Switches	Appliance models – Power and reset Card models – Reset
Environment
Operating temperature	32°F–113°F (0°C–45°C)
Storage temperature	-13°F–140°F (-25°C–60°C)
Relative humidity	5%–80%, non-condensing
