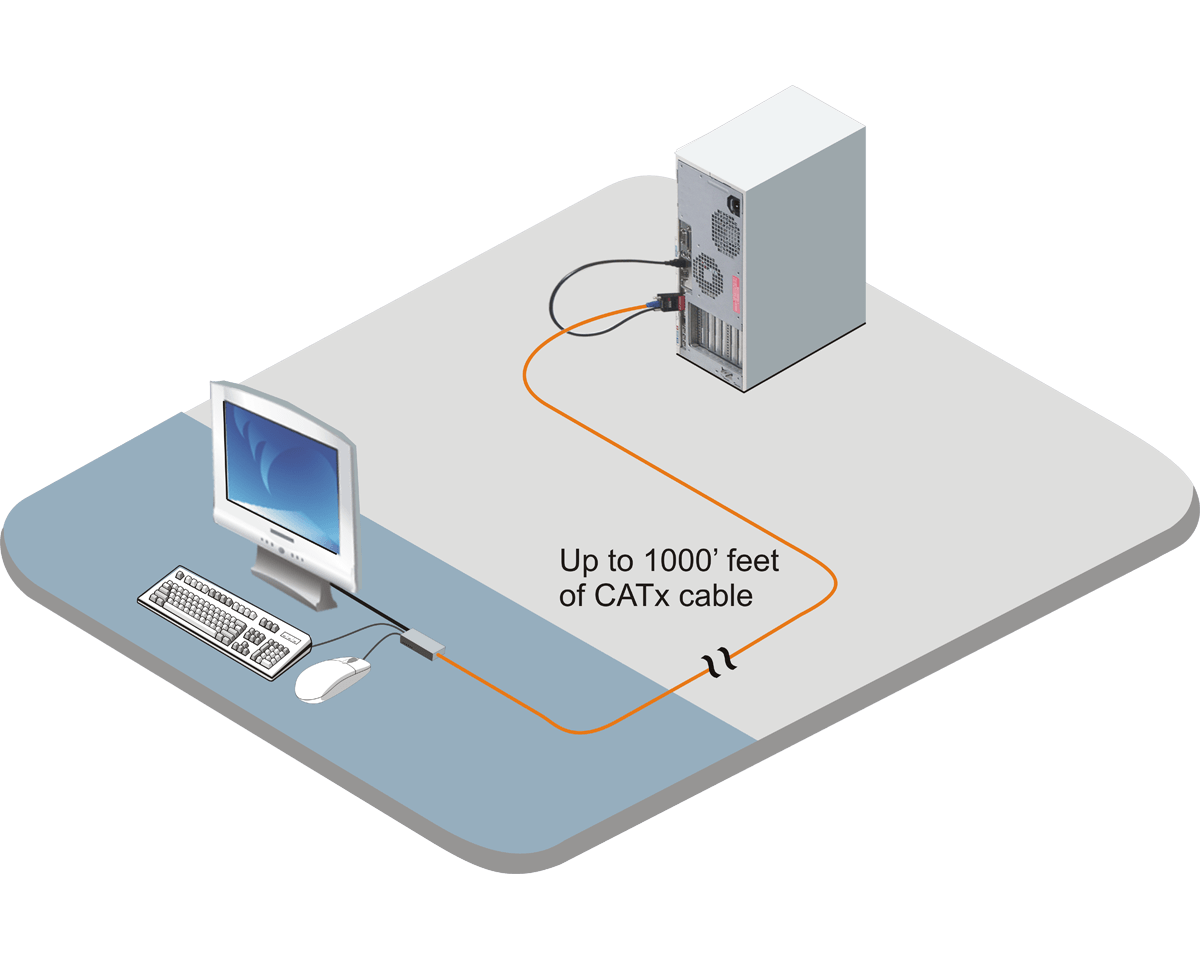

ViewLink CATx KVM 扩展器是一种经济实惠的解决方案，可从中等距离访问和控制计算机。借助 ViewLink CATx，您可以使用普通双绞线 CATx 电缆将计算机放置在距离 KVM 站 1,000 英尺的地方。使用最长 1,000 英尺的任何长度的数据线，ViewLink 将自动计算数据线长度，设置增益和均衡水平，并调整视频以提供清晰的图像。这些自动配置功能使安装变得容易，无需手动调整。

出于多种原因，远程访问计算机很有用。该装置可用于使计算机和用户远离危险的工业环境，减少对硬件和敏感数据的脆弱性，减少噪音和热量，并增加桌面和地板空间。

ViewLink 扩展器在以下型号中包含一系列选项 :

PS/2 single
USB single
PS/2 and USB to PS/2 single
PS/2 and USB to USB single
Video only

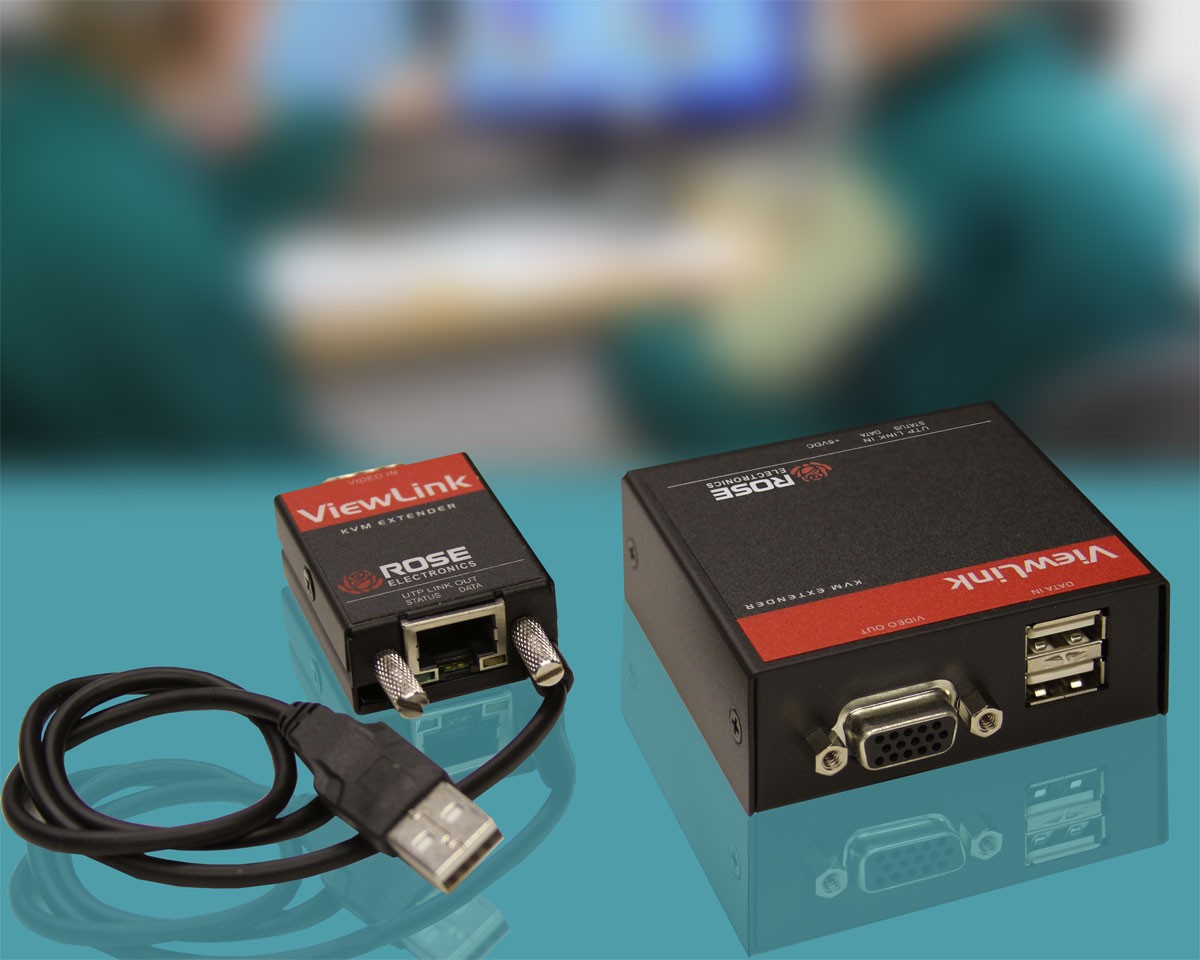

Kits (transmitter, receiver, and power supply)
VLK-TMVPRAVP	Single Access PS/2, VGA KVM Extender Kit, Auto EQ
VLK-TMVURAVU	Single Access USB, VGA KVM Extender Kit, Auto EQ
VLK-TMVBRAVP	Single Access PS/2 & USB to PS/2, VGA KVM Extender Kit, Auto EQ
VLK-TMVBRAVU	Single Access PS/2 & USB to USB, VGA KVM Extender Kit, Auto EQ
VLK-TMVDRAVU	Single Access DB25 to USB, VGA KVM Extender Kit, Auto EQ
VLK-TMVURAVD	Single Access USB to DB25, VGA KVM Extender Kit, Auto EQ
VLK-TMVDRAVP	Single Access DB25 to PS/2, VGA KVM Extender Kit, Auto EQ
VLK-TMVPRAVD	Single Access PS/2 to DB25, VGA KVM Extender Kit, Auto EQ
Video Only & Touchscreen Kits:
VLK-TMV0RAV0-U	Video only w/USB pigtail to draw power from CPU?s USB port
VLK-TMV0RAV0-P	Video only w/PS/2 pigtail to draw power from PS2 Keyboard port
VLK-TMV0RAV0/B1.3	Video only w/barrel jack and transformer for power
VLK-TMVURAVU-T	Single Access USB, VGA KVM Extender Kit, Auto EQ, Touchscreen
Options
-W	Automatic skew adjustment option

上一篇：SVX1 & SVX2

下一篇：CrystalView Pro

推荐产品

B127F-1A1-MM-DD
B127F-1A1-SM-DD
B127A-1A1-BDBH
B127E-1A1-HH
B127F-1A1-MM-HH
B127A-1A1-BHBH
B013-HU-4K
CrystalView Exact

Dimensions (W x D x H)	Transmitter: 1.3" x 1.75" x 0.63" (33 x 44.5 x 16 mm) Receiver: 2.68" x 2.65" x 1" (68 x 67 x 25.4 mm)
Weight	Transmitter: 0.15 lb (0.07 kg) Receiver: 0.15 lb (0.07 kg)
Power	Transmitter: Powered by computer USB or PS/2 Receiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 1A Transmitter: 5W Receiver: 5W
Distance	VGA 1920 x 1200: 300 (90m) VGA 1024 x 768 at 1,000 (300m)
Connectors	Transmitter: VGA video: HD15M PS2 keyboard/mouse: Two mini-din male cable for direct plug-in USB keyboard/mouse: USB A male cable for direct plug-in Receiver: VGA video: HD15F PS2 keyboard/mouse: One PS/2 mini-din6F with included Y cable USB keyboard/mouse: Two USB Type A receptacle Power: Barrel jack
Controls	Status LED: Yellow Link LED: Green
Environment	Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing

ViewLink CATx
